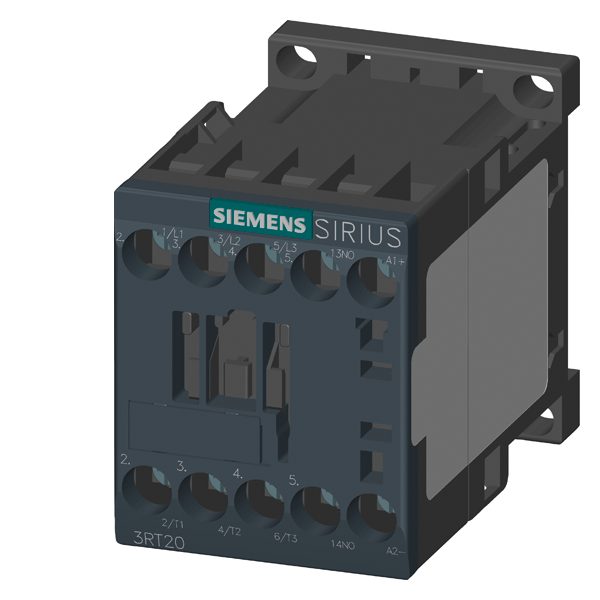

CONTACTOR 3RT2016-1JB41
Product code
3720487
Using the SIRIUS modular system, which consists of motor connection, protection components, starters, and other system components. A fast, simple, flexible, and space-saving solution for switchgear. All this is possible with SIRIUS products. The modular structure is possible up to 250 kW/400 V power. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power contactor, AC switching (EC000066)
Rated control supply voltage AC 50 Hz-99999--99999 V
Rated control supply voltage AC 60 Hz-99999--99999 V
Rated control supply voltage DC24-24 V
Voltage type for actuatingDC
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact3
Type of electrical connection of main circuitScrew connection
Rated operation current Ie at AC-1, 400 V22 A
Rated operation current Ie at AC-3, 400 V9 A
Rated operation power at AC-3, 400 V4 kW
Rated operation current Ie at AC-4, 400 V8.5 A
Rated operation power at AC-4, 400 V4 kW
Rated operation power NEMA3.677 kW
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact0
Product codes
SAPCOX011
STK3720487
PLC3720487
GTIN/EAN4011209846081
Manufacturer part number3RT2016-1JB41
Vendor material number3RT2016-1JB41
Basic information
Package measurements (L x W x H)62 x 50 x 78 mm
Package volume0.242 l
Package weight0.297 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121529
BrandSIEMENS
VendorSIEMENS OY
