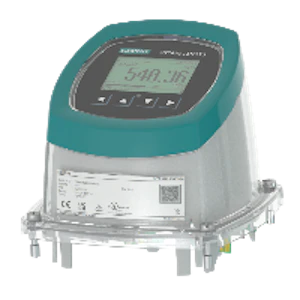

MAGN.FLOWMETER TRANSMITTER FMT020 230V AC
Product code
4426608
The SITRANS FMT020 is a new high-performance amplifier for a magnetic flow meter. Its features, such as conductivity and flow velocity measurement, expand its usability. The amplifier has a robust, durable housing and a large backlit graphical display that makes it easy to configure and commission. The even smaller amplifier is easy to install either directly into the sensor's connection box or separately on a wall mount. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Magnetic-inductive flow meter (EC002991)
Type of measuring instrumentSeparated version, sensor separated
Analogue output 0 mA ... 20 mAyes
Analogue output 4 mA ... 20 mAyes
Analogue output 0 V ... 2 Vno
Analogue output 0 V ... 5 Vno
Analogue output 0 V ... 10 Vno
Analogue output 2 V ... 10 Vno
Ambient temperature-40 - 65 °C
Weight1.54 kg
Product codes
SAPDKY477
HPAC4426608
PLC4426608
GTIN/EAN4047623607250
Manufacturer part number7ME6942-0AA00-0AA3
Vendor material number7ME6942-0AA00-0AA3
Basic information
Package measurements (L x W x H)230 x 160 x 170 mm
Package volume6.256 l
Package weight0.9 kg
Base uniteach
Package units1
Package contents–
UNSPSC41112501
BrandSIEMENS
VendorSIEMENS OY
