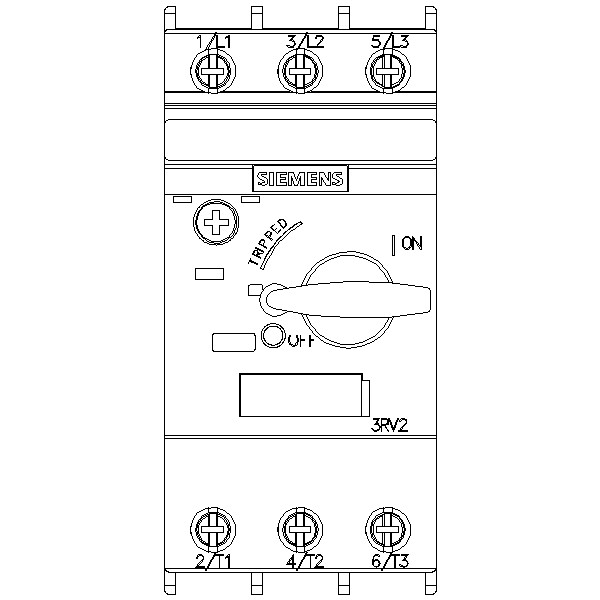

MOTOR CIRCUIT-BREAKER CL10, 0.11...0.16A, 2.1A

Product code
3720832
No product description available.

Product details

Technical specifications

Overload release current setting0,11...0,16 A
Adjustment range undelayed short-circuit release2,1...2,1 A
Phase failure sensitivetrue
Switch off techniqueMagnetic
Rated operating voltage690...690 V
Rated permanent current Iu0,16 A
Rated operation power at AC-3, 230 V0,02 kW
Rated operation power at AC-3, 400 V0,04 kW
Type of electrical connection of main circuitScrew connection
Type of control elementOther
Device constructionBuilt-in device fixed built-in technique
With integrated auxiliary switchfalse
With integrated under voltage releasefalse
Number of poles3
Rated short-circuit breaking capacity lcu at 400 V, AC100 kA

Product codes

SAPCOX297
PLC3720832
STK3720832
GTIN/EAN662643919639
Manufacturer part number3RV2011-0AA10
Vendor material number3RV2011-0AA10

Basic information

Package measurements (L x W x H)102 x 102 x 49 mm
Package volume0.51 l
Package weight0.277 kg
Base uniteach
Package units1
Package contents1
UNSPSC39121601
BrandSIEMENS
VendorSIEMENS OY
