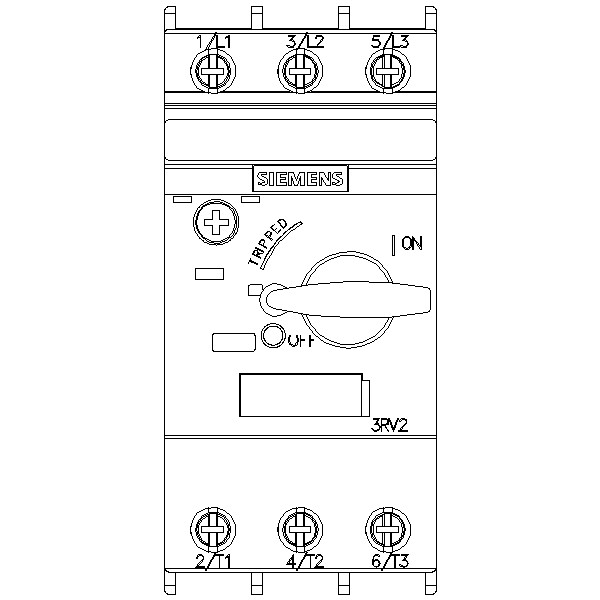

MOTOR CIRCUIT-BREAKER CL10, 0.14...0.2A, 2.6A
Product code
3720833
Using the SIRIUS modular system, which consists of motor connection, protection components, starters, and other system components. A fast, simple, flexible, and space-saving solution for switchgear. All this is possible with SIRIUS products. The modular structure is possible up to 250 kW/400 V power. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Motor protection circuit-breaker (EC000074)
Phase failure sensitiveyes
Switch off techniqueMagnetic
Rated operating voltage690-690 V
Type of electrical connection of main circuitScrew connection
Type of control elementOther
Device constructionBuilt-in device fixed built-in technique
With integrated auxiliary switchno
With integrated under voltage releaseno
Number of poles3
Rated short-circuit breaking capacity Icu at 400 V, AC100 kA
Degree of protection (IP)IP20

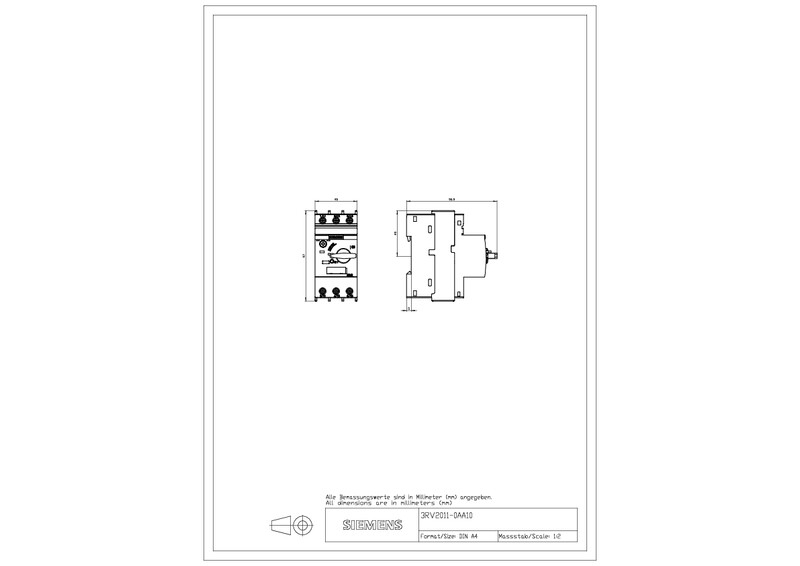

Height97 mm
Width45 mm
Depth97 mm
Product codes
SAPCOX287
STK3720833
PLC3720833
GTIN/EAN662643921335
Manufacturer part number3RV2011-0BA10
Vendor material number3RV2011-0BA10
Basic information
Package measurements (L x W x H)102 x 102 x 49 mm
Package volume0.51 l
Package weight0.293 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121601
BrandSIEMENS
VendorSIEMENS OY
