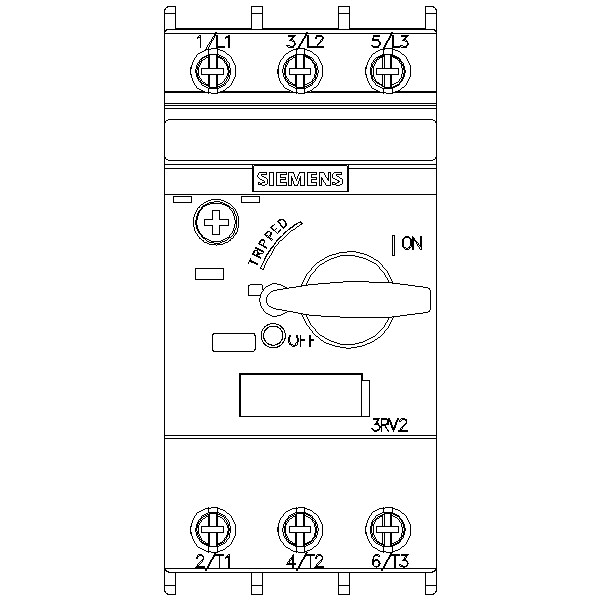

MOTOR CIRCUIT-BREAKER CL10, 0.7...1A, 13A

Name: MOTOR CIRCUIT-BREAKER CL10, 0.7...1A, 13A
Brand: SIEMENS
SKU: COX293

Product code

3720840

No product description available.

Product details

Overload release current setting0,7...1 A

Adjustment range undelayed short-circuit release13...13 A

Phase failure sensitivetrue

Switch off techniqueMagnetic

Rated operating voltage690...690 V

Rated permanent current Iu1 A

Rated operation power at AC-3, 230 V0,18 kW

Rated operation power at AC-3, 400 V0,25 kW

Type of electrical connection of main circuitScrew connection

Type of control elementOther

Device constructionBuilt-in device fixed built-in technique

With integrated auxiliary switchfalse

With integrated under voltage releasefalse

Number of poles3

Rated short-circuit breaking capacity lcu at 400 V, AC100 kA

SAPCOX293

PLC3720840

STK3720840

GTIN/EAN662643921687

Manufacturer part number3RV2011-0JA10

Vendor material number3RV2011-0JA10

Package measurements (L x W x H)102 x 102 x 49 mm

Package volume0.51 l

Package weight0.342 kg

Base uniteach

Package units1

Package contents1

UNSPSC39121601

BrandSIEMENS

VendorSIEMENS OY
