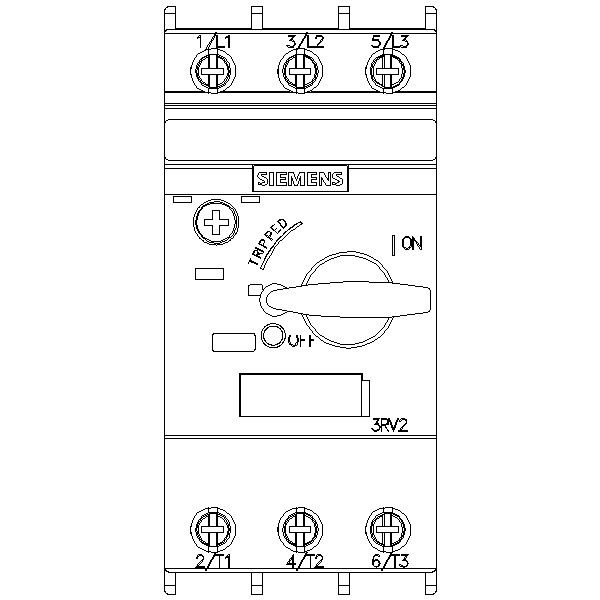

MOTOR CIRCUIT-BREAKER CL10, 23...28A, 364A

Product code
3720861
No product description available.

Product details

Technical specifications

Overload release current setting23...28 A
Adjustment range undelayed short-circuit release364...364 A
Phase failure sensitivetrue
Switch off techniqueMagnetic
Rated operating voltage690...690 V
Rated permanent current Iu28 A
Rated operation power at AC-3, 230 V7,5 kW
Rated operation power at AC-3, 400 V15 kW
Type of electrical connection of main circuitScrew connection
Type of control elementOther
Device constructionBuilt-in device fixed built-in technique
With integrated auxiliary switchfalse
With integrated under voltage releasefalse
Number of poles3
Rated short-circuit breaking capacity lcu at 400 V, AC55 kA

Product codes

SAPCOX296
PLC3720861
STK3720861
GTIN/EAN662643924558
Manufacturer part number3RV2021-4NA10
Vendor material number3RV2021-4NA10

Basic information

Package measurements (L x W x H)102 x 102 x 49 mm
Package volume0.51 l
Package weight0.378 kg
Base uniteach
Package units1
Package contents1
UNSPSC39121601
BrandSIEMENS
VendorSIEMENS OY
