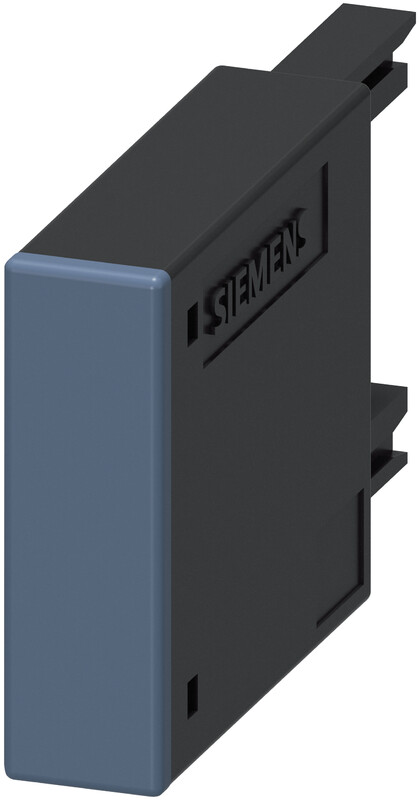

VARISTOR PROTECTOR 3RT2916-1BB00
Product code
3720687
Using the SIRIUS modular system, which consists of motor connection, protection components, starters, and other system components. A fast, simple, flexible, and space-saving solution for switchgear. All this is possible with SIRIUS products. The modular structure is possible up to 250 kW/400 V power. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Surge protection module (EC000683)
FunctionVaristor (voltage-sensitive resistor)
Voltage type (operating voltage)AC/DC
Operating voltage AC 50 Hz24-48 V
Operating voltage AC 60 Hz24-48 V
Operating voltage DC24-70 V
With LED indicationno
Product codes
SAPCOX040
STK3720687
PLC3720687
GTIN/EAN4011209739949
Manufacturer part number3RT2916-1BB00
Vendor material number3RT2916-1BB00
Basic information
Package measurements (L x W x H)56 x 31 x 10 mm
Package volume0.017 l
Package weight0.006 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121610
BrandSIEMENS
VendorSIEMENS OY
