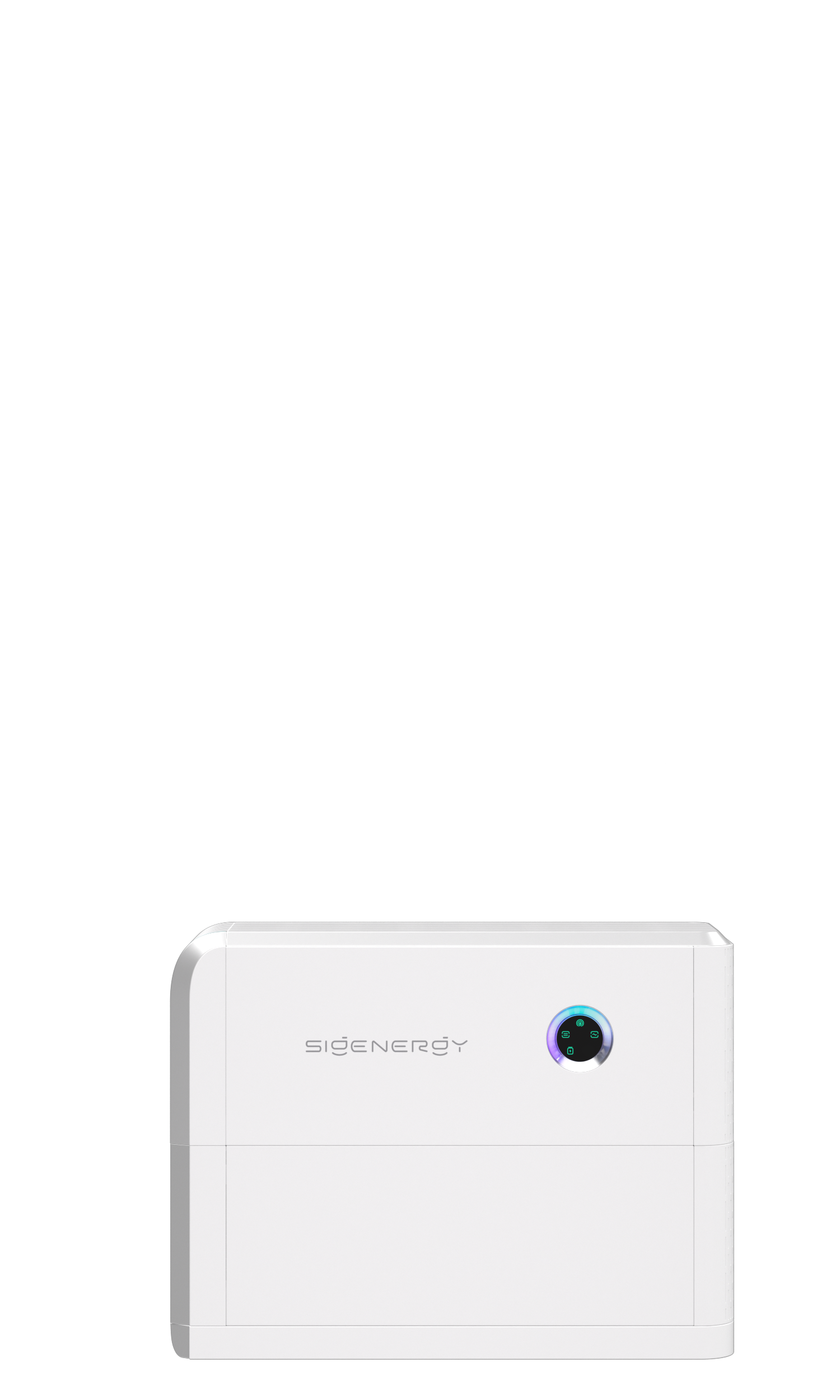

SIGENERGY SIGENSTOR 10KW / 10 KWH
Product code
DMC424
SigEnergy Power Package – 10 kW inverter + 10 kWh battery This product description is an automated translation of the original Finnish description.
Product details
Components (4)
Product name
Product code
Quantity
Technical specifications
Product class (ETIM)Energy storage system (EC004593)
Max. input voltage DC1100 V
Max. input current DC16 A
Number of phases3
Max. output current DC16.7 A
Nominal output power AC10 kW
Battery typeLithium-ion
Nominal battery capacity10 kWh
Usable battery capacity8.76 kWh
European efficiency97.5 %
Ambient temperature-20 - 60 °C
Max. loading current16.7 A
Max. unloading current16.7 A
Max. depth of discharge100 %
Suitable for emergency poweryes
Max. emergency power10 kW
Product codes
SAPDMC424
PLCDMC424
Manufacturer part numberDMC424
Vendor material numberX
Basic information
Package measurements (L x W x H)268 x 767 x 540 mm
Package volume111 l
Package weight114 kg
Base uniteach
Package units1
Package contents–
UNSPSC60104701
BrandSIGENERGY
VendorSIGENERGY TECHNOLOGY B.V.
