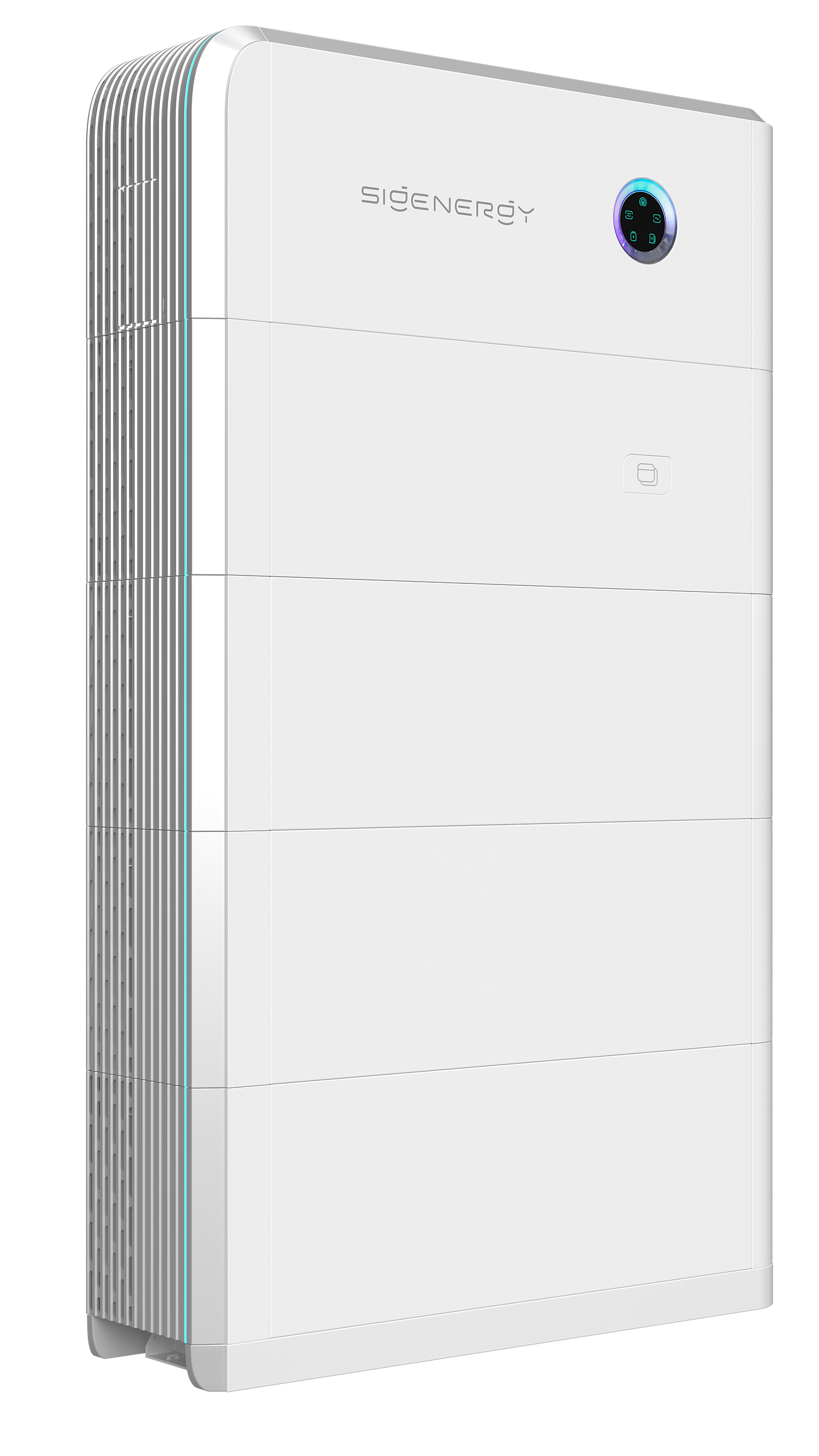

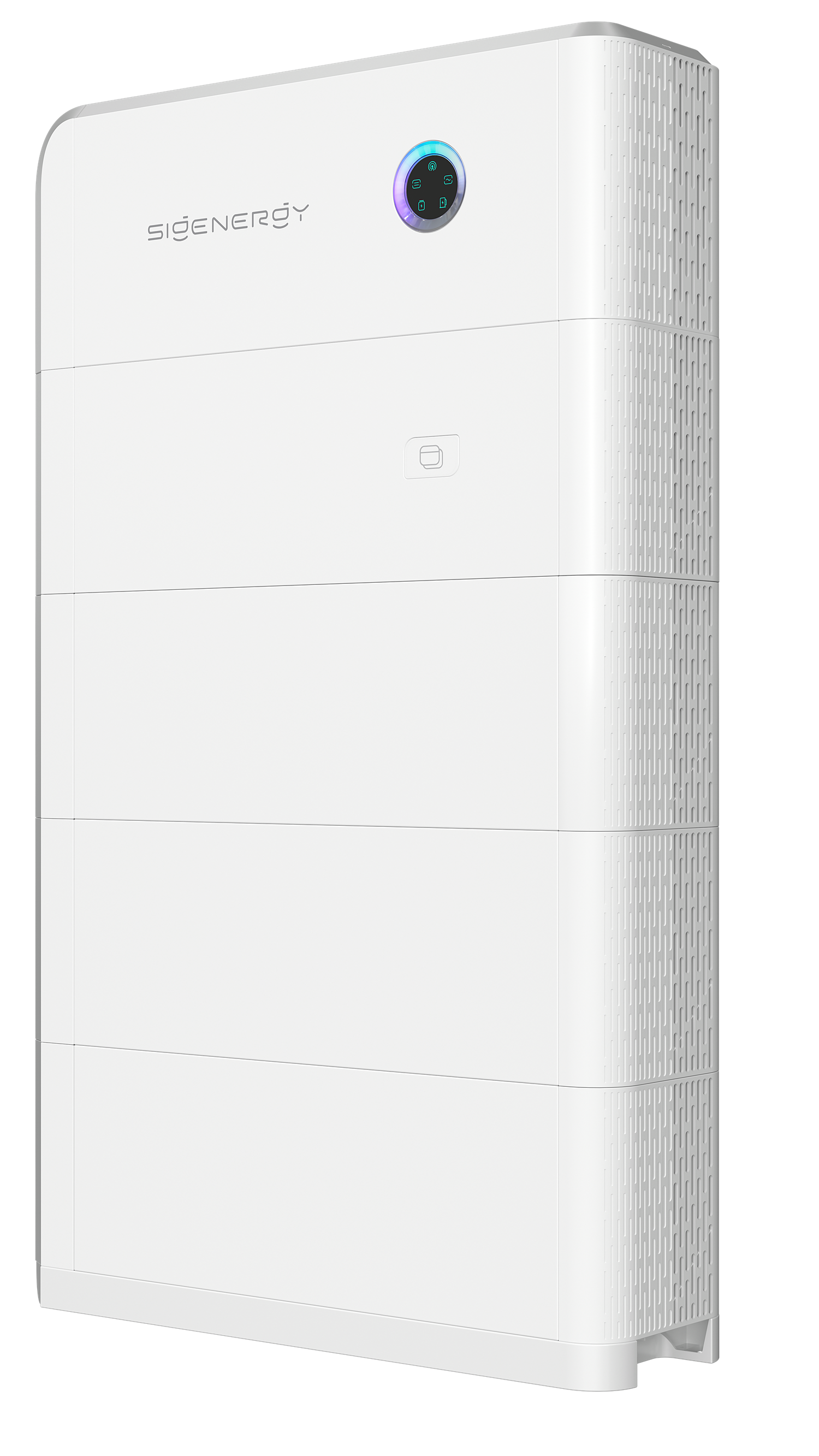

SIGENERGY SIGENSTOR 20KW / 40 KWH
Product code
DMC423
SigEnergy Power Package – 20 kW inverter + 40 kWh battery This product description is an automated translation of the original Finnish description.
Product details
Components (4)
Product name
Product code
Quantity
Technical specifications
Product class (ETIM)Energy storage system (EC004593)
Max. input voltage DC1100 V
Max. input current DC16 A
Number of phases3
Max. output current DC33.4 A
Nominal output power AC20 kW
Battery typeLithium-ion
Nominal battery capacity40 kWh
Usable battery capacity35.04 kWh
European efficiency97.9 %
Ambient temperature-20 - 60 °C
Max. loading current33.4 A
Max. unloading current33.4 A
Max. depth of discharge100 %
Suitable for emergency poweryes
Max. emergency power20 kW
Product codes
SAPDMC423
PLCDMC423
Manufacturer part numberDMC423
Vendor material numberX
Basic information
Package measurements (L x W x H)268 x 767 x 1350 mm
Package volume277.501 l
Package weight540 kg
Base uniteach
Package units1
Package contents–
UNSPSC60104701
BrandSIGENERGY
VendorSIGENERGY TECHNOLOGY B.V.
