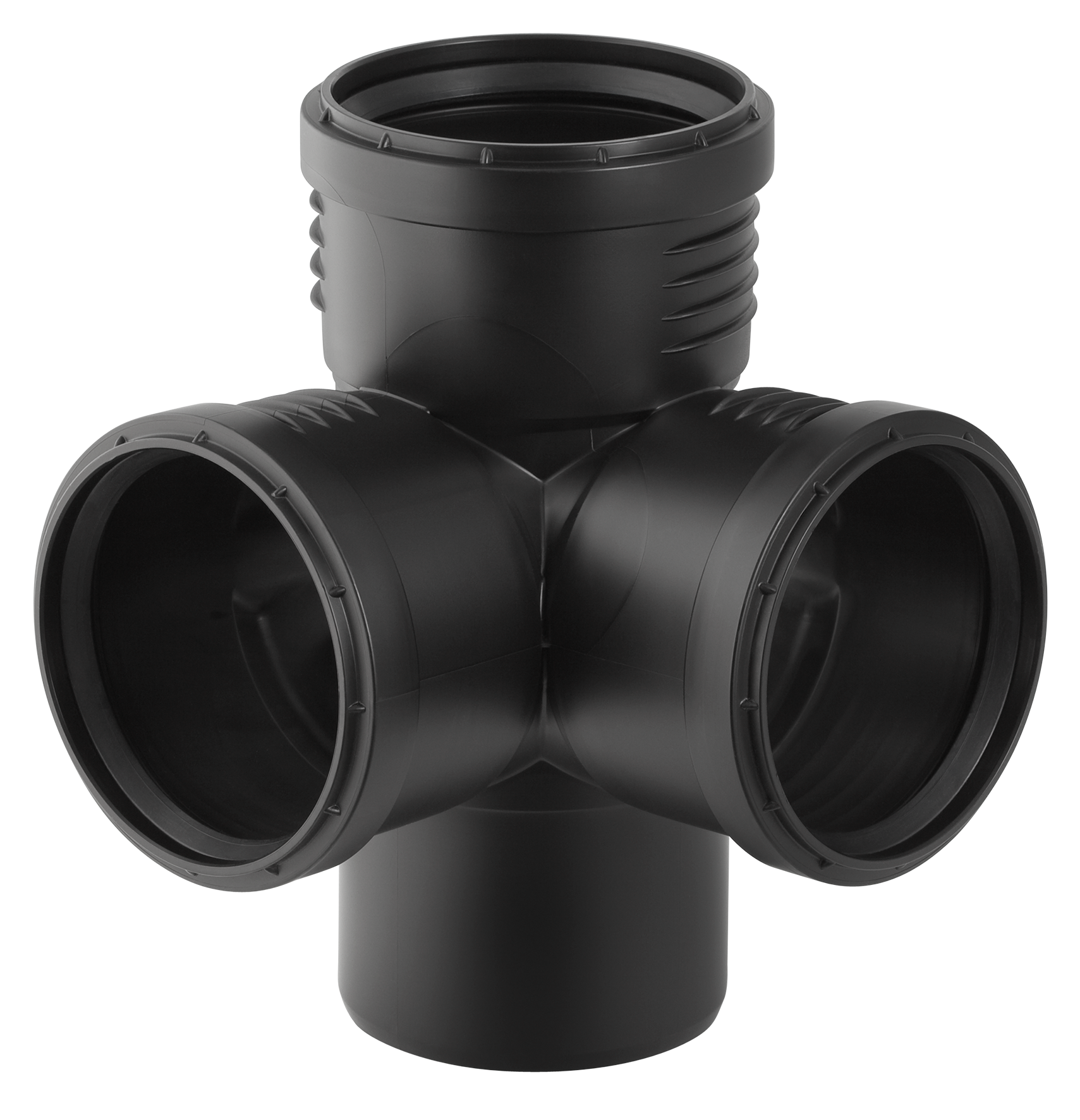

DB CORNER BRANCH SILENT-PP 110x110x110x87,5 PP

Product code
2409700
Geberit Silent-PP is an extremely quiet drainage system that is easy and quick to install. The Geberit Silent-PP system can be connected to the Geberit Silent-db20 system. The 87.5° corner branch fitting for the Silent-PP system is acoustically optimized and the seal material is EPDM rubber. Geberit Silent-PP 87.5° corner branch fitting dimensions: - DN 100/100/100 - d, ø 110 mm - d1, ø 110 mm - d2, ø 110 mm - arc: 90° - H: 18.6 cm - Z1: 5.6 cm - Z2: 6 cm - Z3: 6.1 cm Onninen offers high-quality drainage system components for projects requiring excellent acoustic insulation. Explore other drainage systems and components in Onninen's online store! This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Fitting with 4 connections (EC003026)
MaterialPolypropylene (PP)
Material qualityOther
Surface protectionUntreated
Surface treatmentUntreated
ModelOther
Swept entry type (with inner radius)no
Reducingno
Multi-partno
System specificyes
Nominal diameter connection 1DN 100
Outer pipe diameter connection 1110 mm
Wall thickness, connection 13.6 mm
Connection 1Slide end
Nominal diameter connection 2DN 100
Outer pipe diameter connection 2110 mm

Product codes

SAPATA615
HPAC2409700
PLC2409700
GTIN/EAN4025416937548
Manufacturer part number390.559.14.1
Vendor material number2409700

Basic information

Package measurements (L x W x H)195 x 128 x 254 mm
Package volume6.34 l
Package weight0.673 kg
Base uniteach
Package units1 / 10 / 80
Package contents
UNSPSC40141914
BrandSILENT-PP
VendorGEBERIT OY

Environment and safety

Features

Made from PVCNo
RecyclableYes

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)1.097
GWP, uniteach
Source for GWP dataEPD

Documents (1)

Sustainability brochures & documents

Manufacturer

NameGeberit International AG
Postal addressSchachenstrasse 77 CH-8645 Jona
