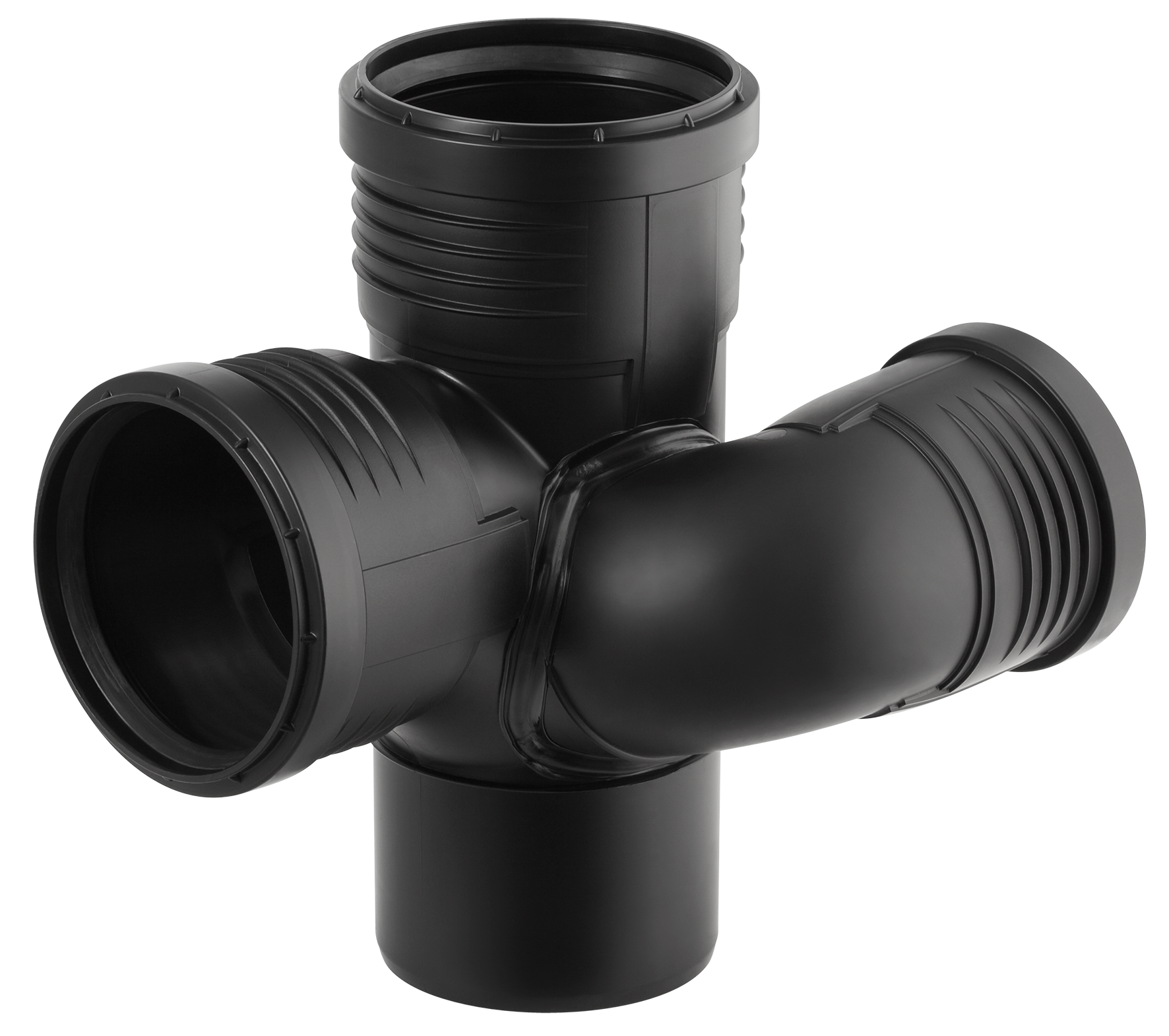

DB DOUBLE BRANCH SILENT-PP 90x75x90x87,5 PP
Product code
2409702
Geberit Silent-PP is an extremely quiet drainage system that is easy and quick to install. The Geberit Silent-PP system can be connected to the Geberit Silent-db20 system.
The double branch fitting of the Silent-PP system is acoustically optimized, and its seal is made of EPDM rubber.
Dimensions of the double branch fitting:
- d ř 90 mm
- d1 ř 75 mm
- d2 ř 90 mm
- DN 90/70/90
Onninen offers high-quality drainage system components for construction projects requiring excellent acoustic insulation. Explore other drainage systems and components in Onninen's online store! This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 4 connections (EC003026)
MaterialPolypropylene (PP)
Material qualityOther
Surface protectionUntreated
Surface treatmentUntreated
ModelOther
Swept entry type (with inner radius)yes
Reducingno
Multi-partno
System specificyes
Nominal diameter connection 1DN 90
Outer pipe diameter connection 190 mm
Connection 1Slide end
Nominal diameter connection 2DN 70
Outer pipe diameter connection 275 mm
Connection 2Slide sleeve
Product codes
SAPATA617
HPAC2409702
PLC2409702
GTIN/EAN4025416937159
Manufacturer part number390.464.14.1
Vendor material number2409702
Basic information
Package measurements (L x W x H)225 x 180 x 238 mm
Package volume9.639 l
Package weight0.49 kg
Base uniteach
Package units1 / 5 / 40
Package contents–
UNSPSC40141914
BrandSILENT-PP
VendorGEBERIT OY
Documents (8)
Certificates
Brochures & documents
Links
Environment and safety
Features
Made from PVCNo
RecyclableYes
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.7987
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
Manufacturer
NameGeberit International AG
Postal addressSchachenstrasse 77 CH-8645 Jona
