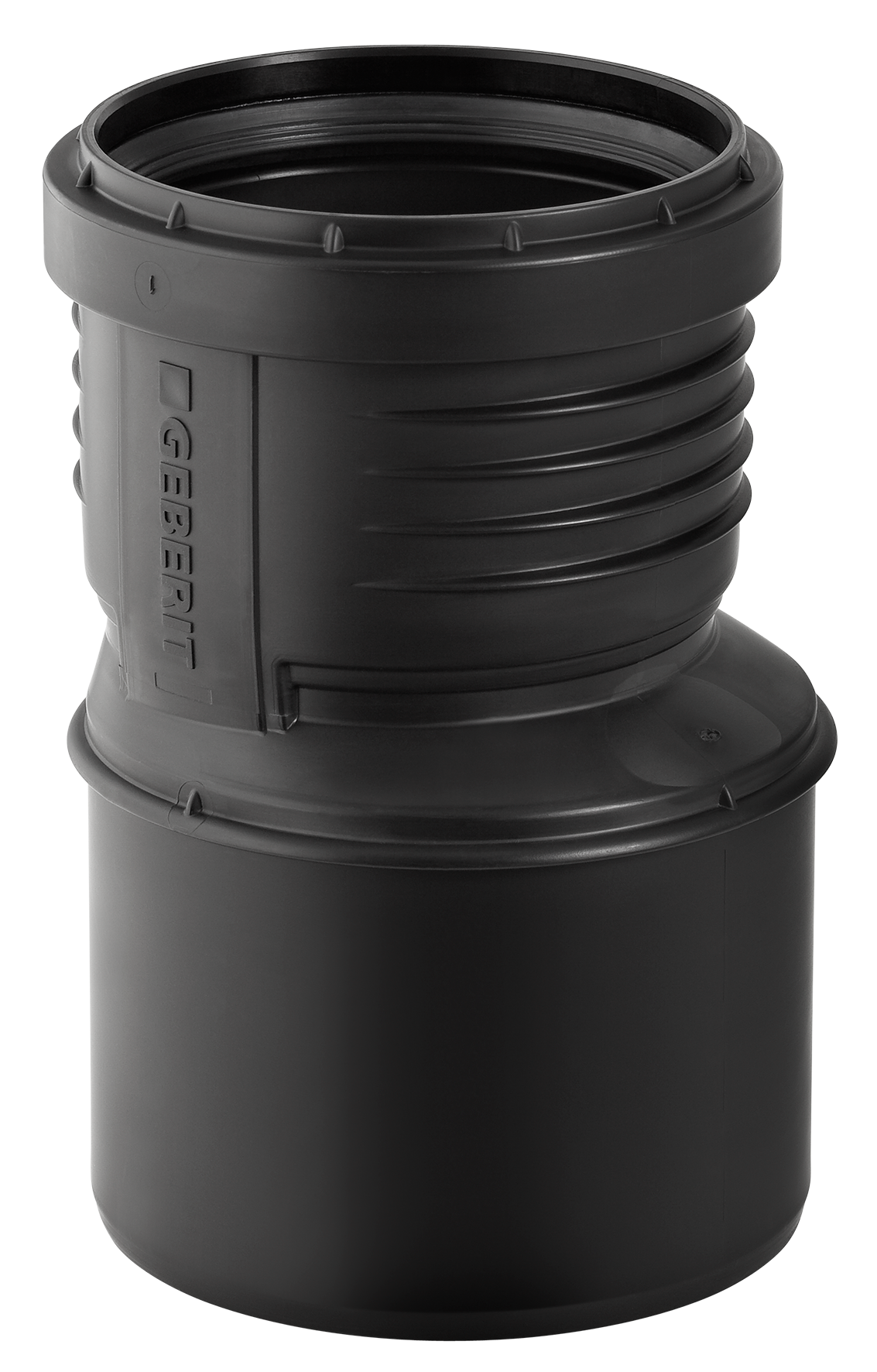

DB REDUCER SILENT-PP 50x32 ECCENTRIC PP
Product code
2409593
Geberit Silent-PP is an extremely quiet drainage system that is easy and quick to install. The Geberit Silent-PP system can be connected to the Geberit Silent-db20 system.
The eccentric reducer of the Silent-PP system is acoustically optimized, and its seal is made of EPDM rubber. Reducer dimensions: d ř 50 mm, d1 ř 32 mm, DN 50/30.
Onninen offers high-quality drainage system components for construction projects requiring excellent acoustic insulation. Explore other drainage systems and components in Onninen's online store! This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Polypropylene (PP)
Material quality connection 1PP-MD
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Polypropylene (PP)
Material quality connection 2PP-MD
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeStraight
Bend angle0 °
Reducingyes
Eccentricyes
System specificyes
Nominal diameter connection 1DN 50
Outer pipe diameter connection 150 mm
Product codes
SAPATA508
HPAC2409593
PLC2409593
GTIN/EAN4025416085447
Manufacturer part number390.279.14.1
Vendor material number2409593
Basic information
Package measurements (L x W x H)57 x 57 x 114 mm
Package volume0.37 l
Package weight0.044 kg
Base uniteach
Package units1 / 10 / 100
Package contents–
UNSPSC40141914
BrandSILENT-PP
VendorGEBERIT OY
Documents (9)
Certificates
Brochures & documents
Links
Environment and safety
Features
Made from PVCNo
RecyclableYes
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0717
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
Manufacturer
NameGeberit International AG
Postal addressSchachenstrasse 77 CH-8645 Jona
