LED STRIP SLC COB STANDARD 24V 10W IP20 3000K 1130LM 5M
Product code
4145807
Excellent light output with low power consumption. Suitable for most lighting solutions, including direct, indirect, accent, and background lighting. 384 LEDs per meter ensure an extremely uniform light surface in any installation, with no visible LED points.
It is recommended to use an aluminum profile during installation to ensure proper heat dissipation and long service life. The adhesive LED strip enables easy and quick installation. Available in various color temperatures and IP ratings.

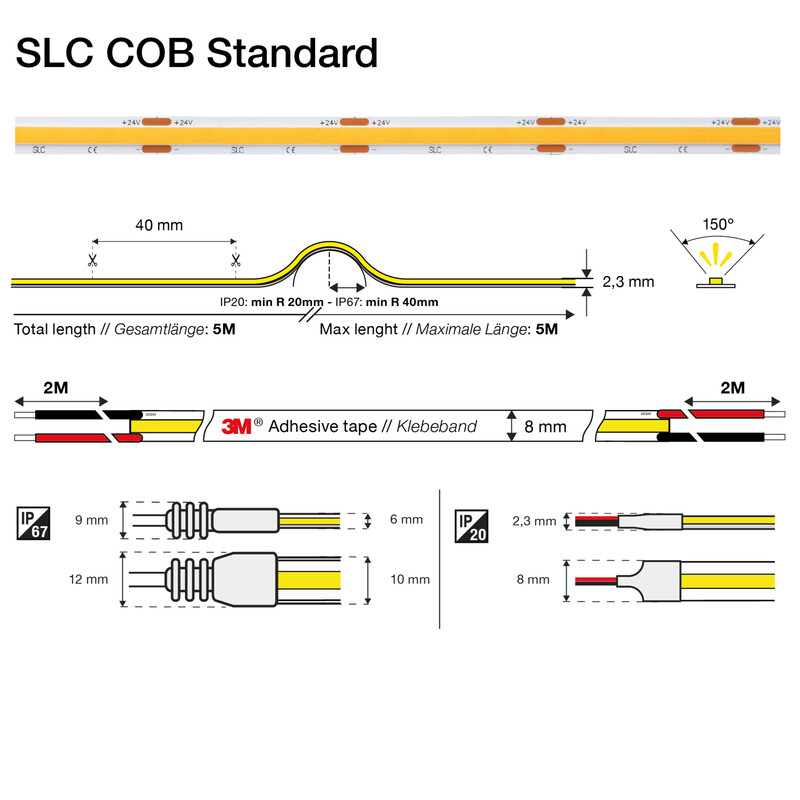

Features- Cutting interval: 40 mm
- Connection: 2 m cables attached at both ends
- Maximum length: 5 meters
- Voltage: 24 VDC
- Color rendering: CRI > 90
- MacAdam: 3
- Beam angle: 150°
- Operating temperature: –20°C ~ +45°C
- Service life: 60,000 hours (L80B10)
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter384
Number of nodes per foot117
Lamp power per meter10 W
Lamp power per foot3.05 W
Luminous flux per meter1130 lm
Luminaire efficacy113 lm/W
Voltage typeDC
Lamp voltage24-24 V
Beam angle150 °
Type of control gearLED operating device voltage-controlled
Suitable for dimmerno
Exchangeable control gearno
Product codes
SAPDJJ017
STK4145807
PLC4145807
GTIN/EAN7070938077521
Manufacturer part numberS18011
Vendor material number4145807
Basic information
Package measurements (L x W x H)205 x 190 x 12 mm
Package volume0.467 l
Package weight0.19 kg
Base uniteach
Package units1 / 20
Package contents–
UNSPSC39111544
BrandSLC
VendorHEDTEC OY AB
