LED STRIP SLC COB STANDARD 24V 10W IP20 4000K 1190LM 5M
Product code
4145808
Excellent light output with low power consumption. Suitable for most lighting solutions, including direct, indirect, accent, and background lighting. 384 LEDs per meter ensure an extremely uniform light surface in any installation, with no visible LED points.
It is recommended to use an aluminum profile during installation to ensure proper heat dissipation and long service life. The adhesive LED strip enables easy and quick installation. Available in various color temperatures and IP ratings.

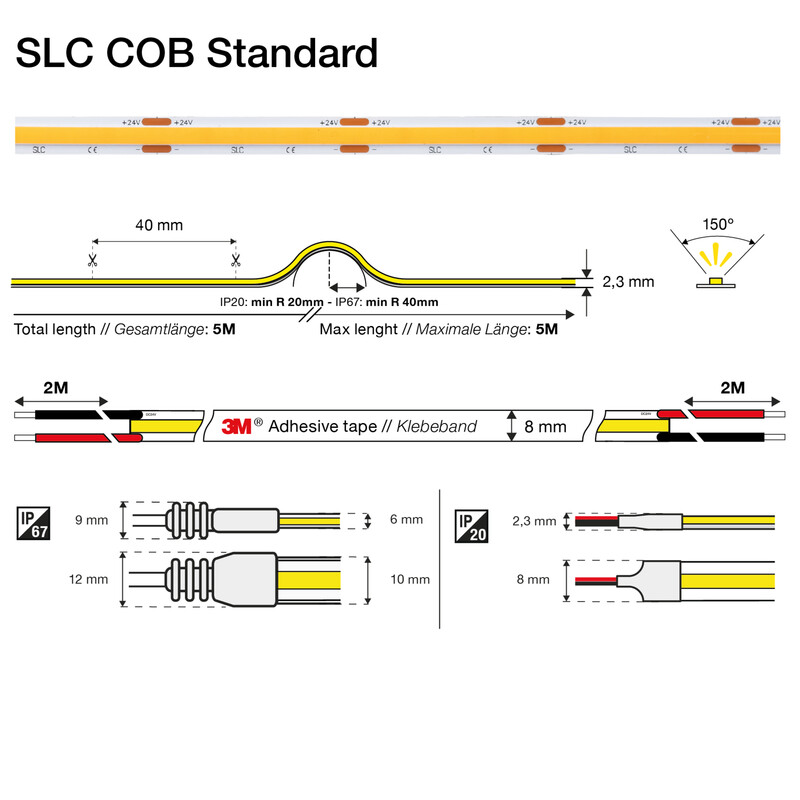

Features- Cutting interval: 40 mm
- Connection: 2 m cables attached at both ends
- Maximum length: 5 meters
- Voltage: 24 VDC
- Color rendering: CRI > 90
- MacAdam: 3
- Beam angle: 150°
- Operating temperature: –20°C ~ +45°C
- Service life: 60,000 hours (L80B10)
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter384
Number of nodes per foot117
Lamp power per meter10 W
Lamp power per foot3.05 W
Luminous flux per meter1190 lm
Luminaire efficacy119 lm/W
Voltage typeDC
Lamp voltage24-24 V
Beam angle150 °
Type of control gearLED operating device current-controlled
Suitable for dimmerno
Exchangeable control gearno
Product codes
SAPDJJ018
STK4145808
PLC4145808
GTIN/EAN7070938077538
Manufacturer part numberS18012
Vendor material number4145808
Basic information
Package measurements (L x W x H)205 x 190 x 12 mm
Package volume0.467 l
Package weight0.19 kg
Base uniteach
Package units1 / 20
Package contents–
UNSPSC39111544
BrandSLC
VendorHEDTEC OY AB
Documents (7)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)2.47
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
