LED STRIP SLC HIGH OUTPUT 10W/1235LM/M IP20 3K 5M 24V
Product code
4145574
Professional highly luminous LED strip, perfect for demanding projects where lighting efficiency is crucial. Constant Current technology protects each LED diode against voltage drop and provides uniform light even over long lengths. Integrated overheating protection. Installable into aluminum profiles to ensure adequate cooling and long service life. The strip features 126 LEDs per meter, ensuring consistent and uniform light in all installations. 3M tape ensures easy and quick installation. Available in various lengths, color temperatures, and IP ratings.
Technical specifications

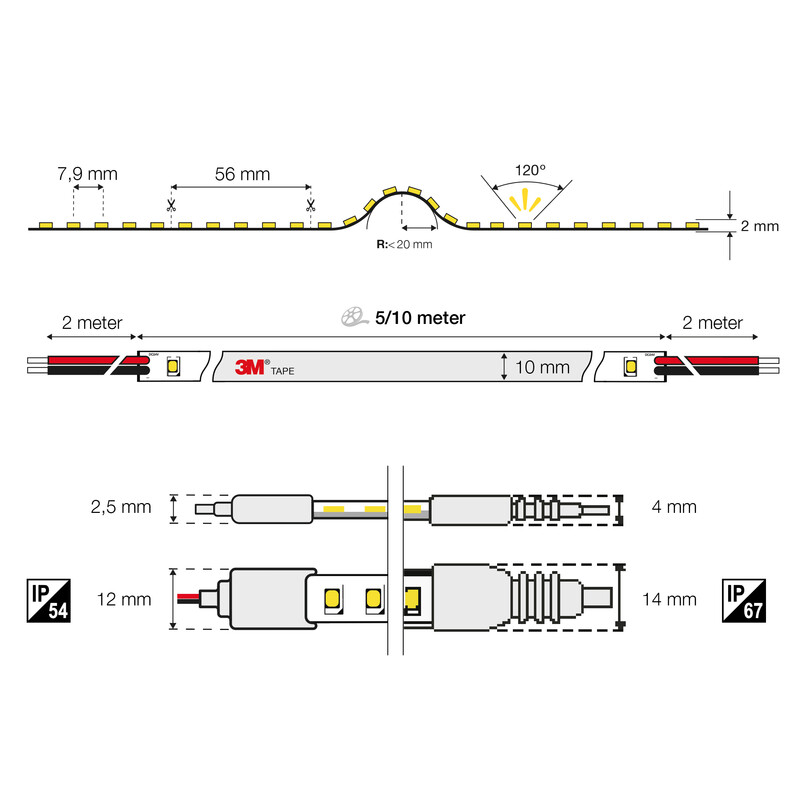

- diodes: 126 LEDs per meter
- cutting interval: 56 mm
- connection: 2 m cables attached at both ends
- voltage: 24 VDC
- color rendering: CRI >90-100
- MacAdam: 3
- beam angle: 120°
- operating temperature: -10°C ~ +45°C
- service life: 60,000 hours (L80B10)
Product details
Technical specifications
Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting/recessed mounting
Lamp typeLED not exchangeable
Number of nodes per meter126
Lamp power per meter10 W
Luminous flux per meter1235 lm
Luminaire efficacy123.5 lm/W
Voltage typeDC
Lamp voltage24-24 V
Beam angle120 °
Type of control gearLED operating device voltage-controlled
Suitable for dimmeryes
Exchangeable control gearyes
Energy efficiency class of the light source according to EU regulation 2019/2015F
Rated lifetime L70/B50 at 25 °C120000 h
Product codes
SAPCYM392
STK4145574
PLC4145574
GTIN/EAN7070938068093
Manufacturer part numberS13136
Vendor material number4145574
Basic information
Package measurements (L x W x H)200 x 200 x 15 mm
Package volume0.6 l
Package weight0.17 kg
Base uniteach
Package units1 / 15
Package contents–
UNSPSC39111544
BrandSLC
VendorHEDTEC OY AB
