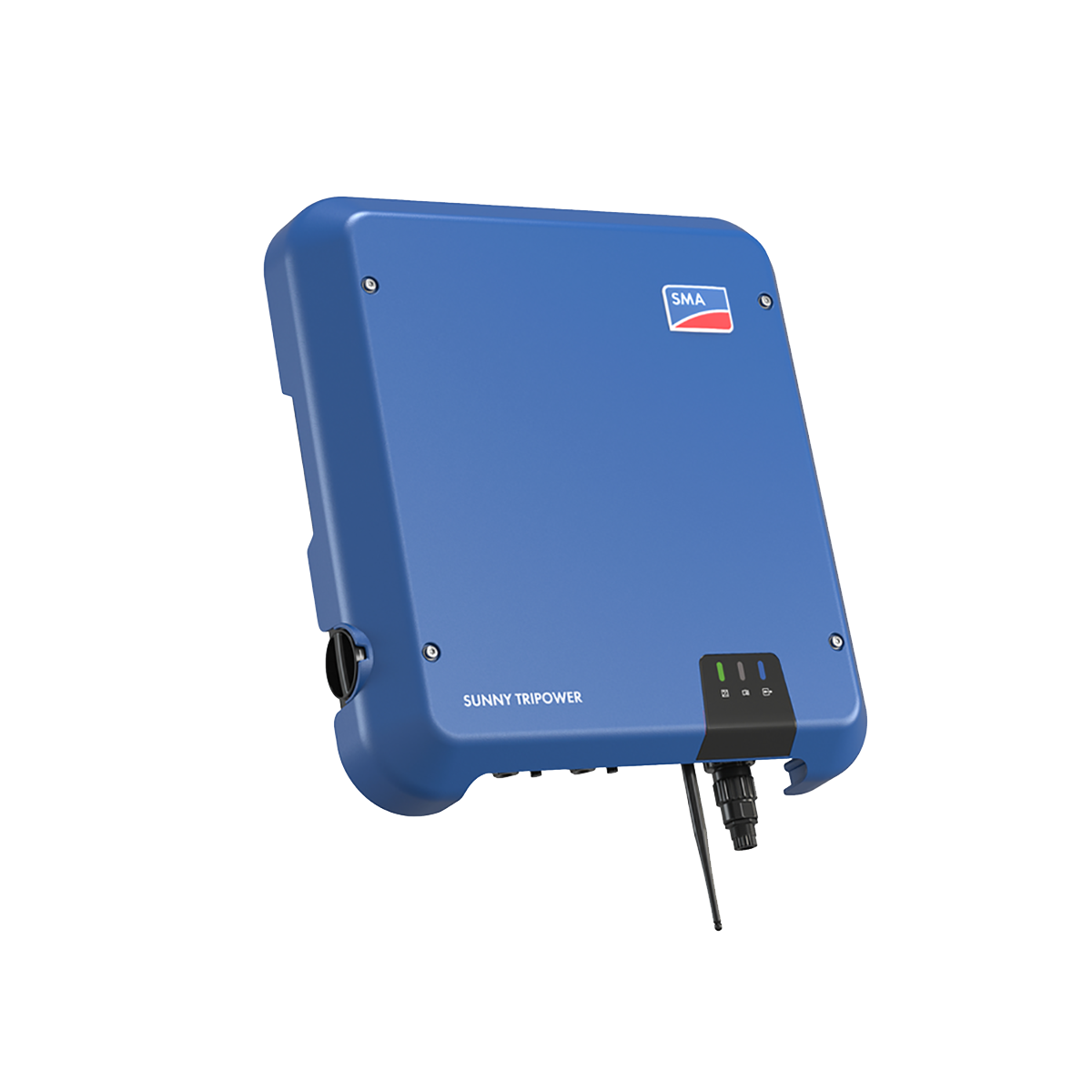

PV INVERTER 3P STP4.0-3AV-40
Product code
CGJ326
Sunny Tripower makes solar power systems exceptionally efficient for households. It combines the inverter’s peak performance with maximum ease and comfort for users. With integrated services and shading management, it can meet all challenges posed by rooftops. Sunny Tripower reliably ensures maximum solar yield and reduces electricity costs.
Sunny Tripower can be quickly commissioned via smartphone or tablet thanks to its integrated network interface. 100% plug and play installation. It is installable by a single person due to its low weight, and its compact design means minimal space requirements.
Intelligent energy production optimization:
- SMA ShadeFix is a patented inverter software that optimizes energy production in nearly all conditions.
- SMA Smart Connected inverter monitoring enhances safety by detecting faults at an early stage and automatically notifying the installer.
- SMA ShadeFix is integrated software for production optimization.
- Automatic inverter monitoring via SMA Smart Connected.
- Remote system monitoring via Sunny Portal and Sunny Places.
- 10-year warranty. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)DC/AC grid inverter (EC001747)
Nominal output power AC value4000 W
Max. input power DC8000 W
Max. input voltage DC850 V
Max. input current DC18 A
Max. input current DC per MPP tracker18 A
Max. input current DC per string input18 A
Rated MPP-voltage175 - 800 V
Nominal output power AC4000 - 4000 W
Number of independent MPPT inputs2
European efficiency97.1 %
Output phases3-phase
Integrated DC switchyes
DisplayNone
Ethernetyes
Built-in batteryno
Product codes
SAPCGJ326
STKCGJ326
PLCCGJ326
GTIN/EAN6438056241063
Manufacturer part numberSTP4.0-3AV-40
Vendor material numberSTP4.0-3AV-40
Basic information
Package measurements (L x W x H)600 x 535 x 270 mm
Package volume86.67 l
Package weight18 kg
Base uniteach
Package units1 / 12
Package contents–
UNSPSC39121006
BrandSMA
VendorSMA SOLAR TECHNOLOGY AG
