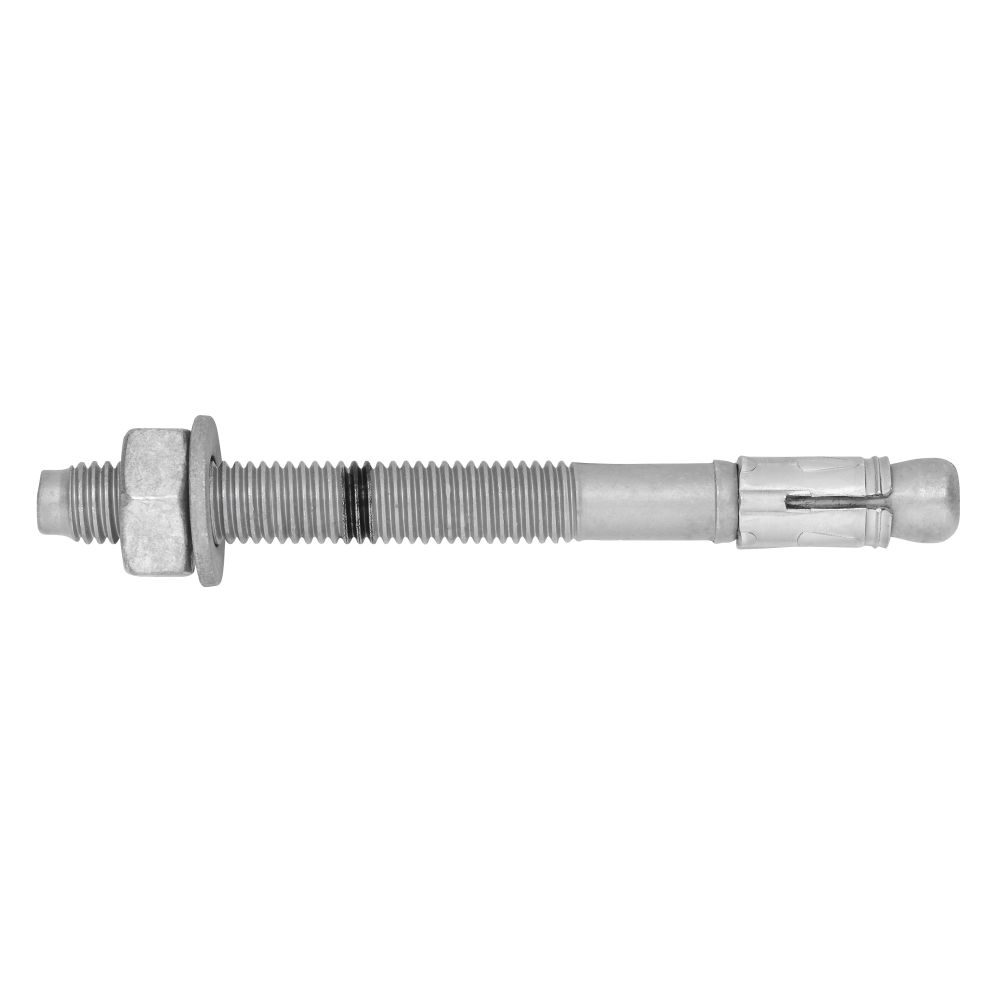

ANCHOR SORMAT S-KAK+ 10X72/10/- HDG 40PC

High-quality Finnish-made Sormat S-KAK+ hot-dip galvanized M10 wedge anchor. Premium domestic moment-controlled wedge anchors are suitable for pre-installation, through-installation, and offset installation. The anchor body, manufactured from carbon steel through cold working, is durable and safe, effectively withstanding loads applied to the fastening. Surface treatment: hot-dip galvanizing (>50 µm) in accordance with EN ISO 10684. Recommended for use in dry and humid indoor environments and also for outdoor applications. The product has European Technical Approval ETA-16/0934 for fastenings in concrete (Option 1). The product is also CE marked. The product is fire rated up to R120 in concrete installations. Installation steps: 1. Drill a hole according to product specifications. 2. Clean the hole with a wire brush and air pump. Clean with brush x 2, pump x 2, brush x 2. 3. Drive the anchor into place with a hammer or mechanically using an installation tool. 4. Tighten the anchor to the specified torque value using a torque wrench. During tightening, the anchor wings expand against the hole walls, and the resulting friction securely holds the anchor in place. The anchor size and thickness of the attached component are marked on the anchor body. A length marking identifier C is located at the end of the anchor body. Packaging size: 40 pieces. Wedge anchor type designation: nominal diameter x length / fastening thickness. Thread length 27 mm. Spanner size AV17. Suitable substrates: concrete and natural stone. Suitable for fastenings in both cracked and uncracked concrete. Drill hole diameter 10 mm. Drill hole depth 55 mm. Thickness of attached material 10 mm. This product description is an automated translation of the original Finnish description.
