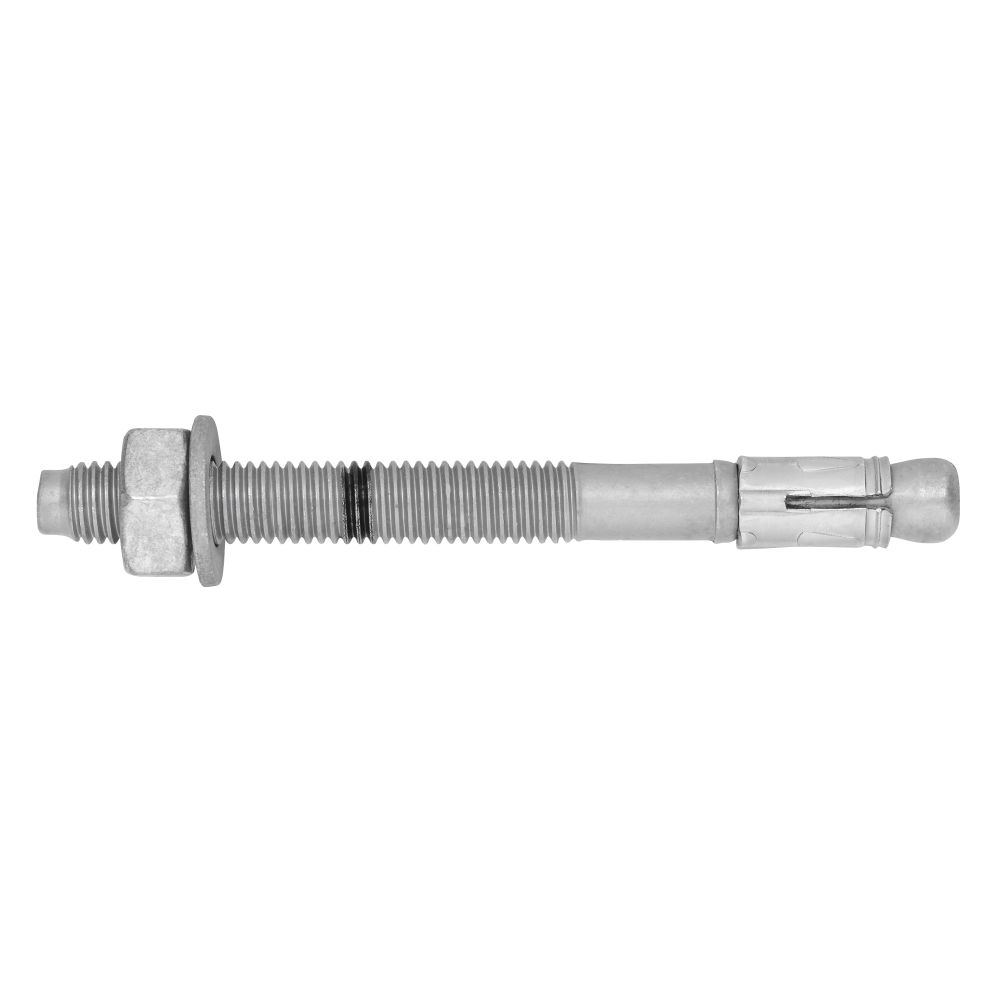

ANCHOR SORMAT S-KAK+ 12X88/10/- HDG 20PC

High-quality Finnish-made Sormat S-KAK+ hot-dip galvanized M12 wedge anchor. Premium domestic torque-controlled wedge anchors are suitable for pre-installation, through-installation, and standoff installation. The anchor body, manufactured from carbon steel through cold working, is durable and safe, effectively withstanding loads applied to the fastening. Surface treatment: hot-dip galvanizing (>50 µm) in accordance with EN ISO 10684. Recommended for use in dry and humid indoor environments as well as outdoor applications. The product has European Technical Approval ETA-16/0934 for fastenings in concrete (Option 1). The product is also CE marked. The product is fire rated up to R120 in concrete installations. Installation steps: 1. Drill a hole according to product specifications. 2. Clean the hole with a wire brush and air pump. Clean with brush x 2, pump x 2, brush x 2. 3. Drive the anchor into place with a hammer or mechanically using an installation tool. 4. Tighten the anchor to the specified torque value using a torque wrench. As the anchor is tightened, its wings expand against the hole walls, and the resulting friction securely holds the anchor in place. The anchor size and thickness of the attached component are marked on the anchor body. A length marking identifier D is located at the end of the anchor body. Packaging size: 20 pieces. Wedge anchor type designation: nominal diameter x length / fastening thickness. Thread length: 38 mm. Spanner size AV19. Suitable substrates: concrete and natural stone. Suitable for fastenings in both cracked and uncracked concrete. Drill hole diameter: 12 mm. Drill hole depth: 70 mm. Thickness of attached material: 10 mm. This product description is an automated translation of the original Finnish description.
