CONC SCREW SORMAT S-CSA+ HEX 8X100/35/50 ML COATED 5PCS

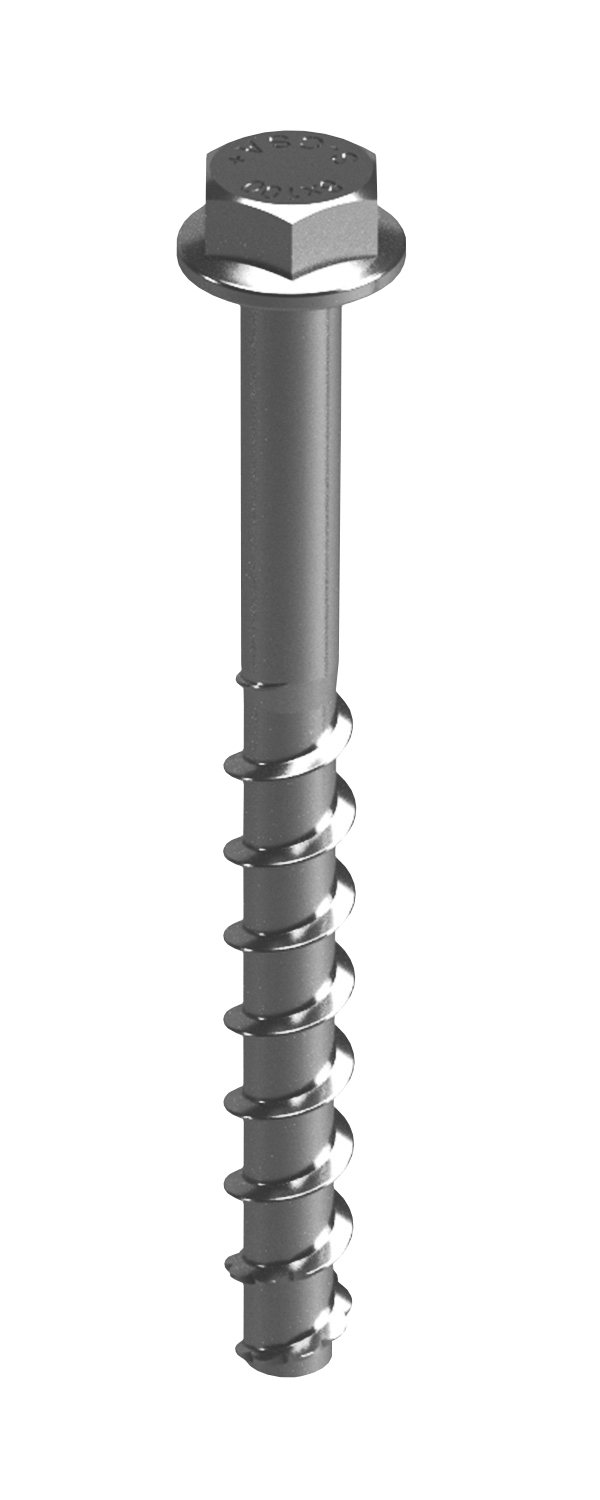

High-performance Sormat S-CSA+ HEX ML concrete screw manufactured in Finland with a hexagonal flange. The carbon steel screw is cold-formed to provide a reliable fastener strong enough to penetrate even hard materials. The concrete screw features a hardened special thread that forms threads directly into the base material. The ML (Multi Layer) surface treatment is a corrosion-resistant three-layer coating (>1000 hours resistance in salt spray test according to EN ISO 9227), enabling significantly broader application areas than standard electro-galvanized screws. The screw is fully removable. Screw tensile strength: 800 MPa. Recommended for dry indoor environments and outdoor applications with consideration of usage limitations. The product has European Technical Approval ETA-20/0446 for concrete and is CE marked. Fire-rated for concrete installations up to R120. The concrete screw is designed for through-installation. Installation steps: 1. Drill a hole according to product specifications. 2. Clean the hole thoroughly. 3. Insert the screw through the material to be fastened until the anchor flange contacts the surface. We recommend using a suitable-sized impact screwdriver for installing concrete screws. No preset torque value. The design allows for small minimum edge and spacing distances between anchors. Packaging size: 5 pieces. Packaging type: small pack. The screw has a partial thread with a thread length of 65 mm. Spanner size AV13, flange diameter 17.5 mm, flange height 8 mm. Suitable base materials: concrete, solid brick, and solid calcium silicate brick. Suitable for both cracked and uncracked concrete. Drill hole diameter: 8 mm. Drill hole depth: 75 mm. Thickness of material to be fastened: 35/50 mm. This product description is an automated translation of the original Finnish description.
