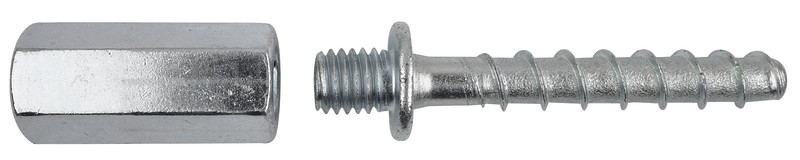

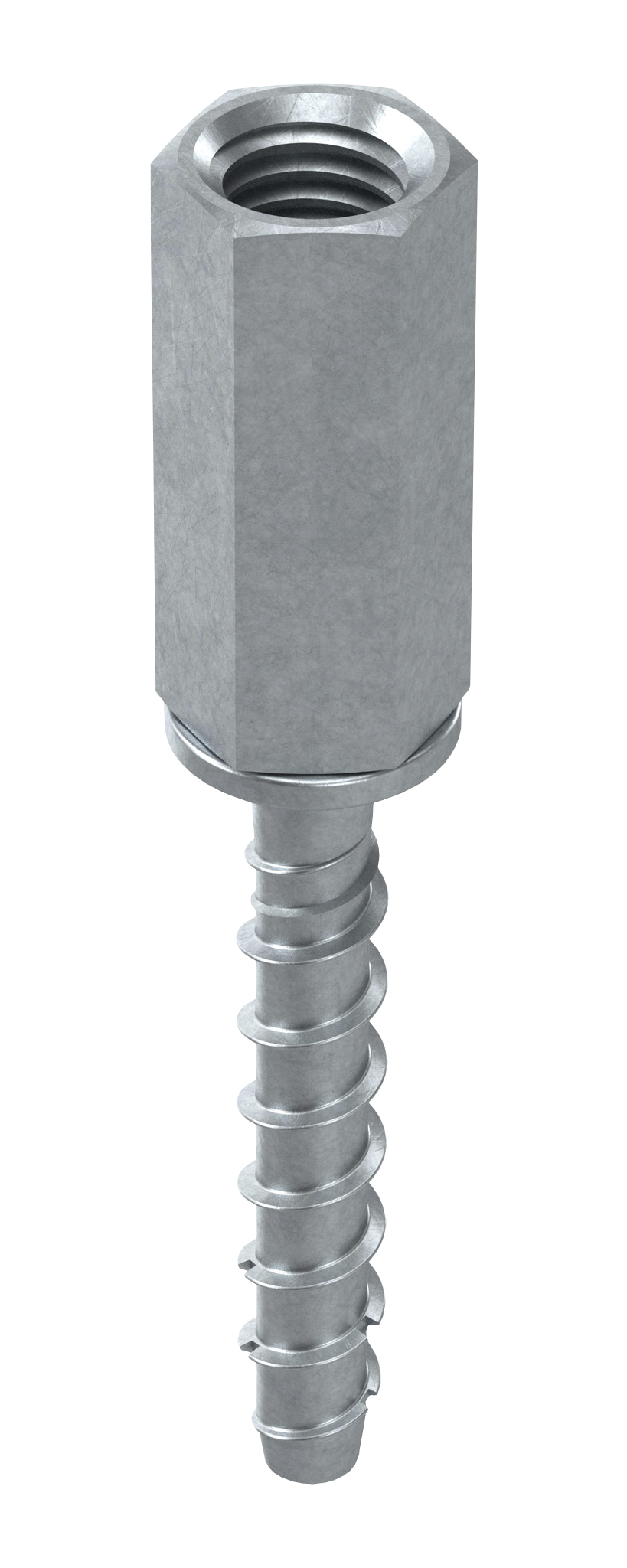

CONC SCREW SORMAT S-CSA INNER 6x45 M8/M10x30 ZINC PLATED 50
Product code
3255599
Domestic electrically set M8/M10 internal thread fastener (ZN), e.g., for ceiling soffits. Also suitable for full tile and full Kahi tile as well as hollow core slabs in dry indoor environments. ETA-approved for series anchoring and fire-rated R120 for concrete. ETA-approved S-CSA I concrete screws are equipped with a detachable M8/M10 internal thread component.
Features- requires only a small drill hole
- no pre-defined tightening torque
- allows for small anchor spacing and edge distances
- screw is fully removable.
Product details
Technical specifications
Product class (ETIM)Concrete screw (EC002910)
Length45 mm
Thread diameter7.45 mm
Drill hole diameter6 mm
Min. drill hole depth50 mm
MaterialSteel
Material qualityOther
Surface protectionGalvanic/electrolytic zinc plated
Head formHexagon with pressed ring
Screwing systemOutside hexagon
Wrench width13 mm
Suitable for cracked concreteyes
Suitable for uncracked concreteyes
Suitable for hollow core slabyes
Fire resistantyes
Product codes
SAPCOM817
HPAC3255599
PLC3255599
GTIN/EAN6416031715143
Manufacturer part number9640071514
Vendor material number9640071514
Basic information
Package measurements (L x W x H)212 x 150 x 53 mm
Package volume1.685 l
Package weight1.89 kg
Package units1 / 5
Package contents50 each
UNSPSC31161526
BrandSORMAT
VendorEJOT SORMAT OY
The country of origin stated by the supplierFinland
