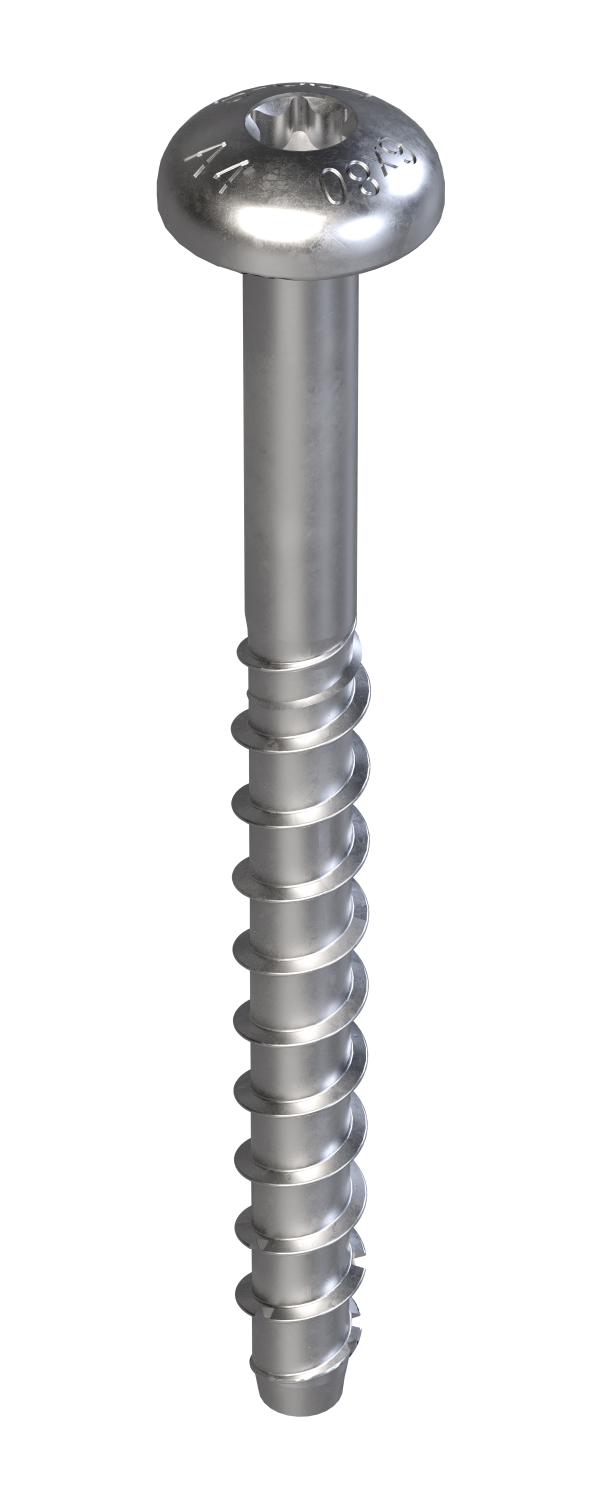

CONC SCREW SORMAT S-CSA P A4 6X80/35/25 T30 PANHEAD A4 50PC

Sormat S-CSA P A4 concrete screw with dome head and Torx drive, manufactured in Finland. The anchor body, made from cold-worked A4 steel (1.4401), and the attached carbon steel tip ensure secure anchoring even in hard materials. The screw features a hardened special thread that forms threads directly into the base material. Surface treatment: electroplated zinc coating (? 5 µm) in accordance with EN ISO 4042. The screw is fully removable. Recommended for indoor, outdoor, and industrial applications. The product has European Technical Approval ETA-22/0413 for concrete and is CE marked. Fire rated for concrete installations up to R120. The concrete screw is designed for through-installations. Installation steps: 1. Drill a hole according to product specifications. 2. Clean the hole thoroughly. 3. Insert the screw through the material to be fastened until the anchor base contacts the material. We recommend using a suitable-sized impact screwdriver for installing concrete screws. No pre-defined tightening torque. The design allows for small minimum edge and spacing distances between anchors. Pack size: 50 pcs. The screw has a partial thread with a thread length of 55 mm. Screw head: T30, head diameter 14.5 mm, head height 5 mm. Suitable substrates: concrete, solid brick, and solid calcium sandstone. Suitable for both cracked and uncracked concrete. Drill hole diameter: 6 mm. Minimum drill hole depth: 55/65 mm. Thickness of material to be fastened: 35/25 mm. This product description is an automated translation of the original Finnish description.
