CONCRETE SCR SORMAT S-CSA 6X100 SW13 50

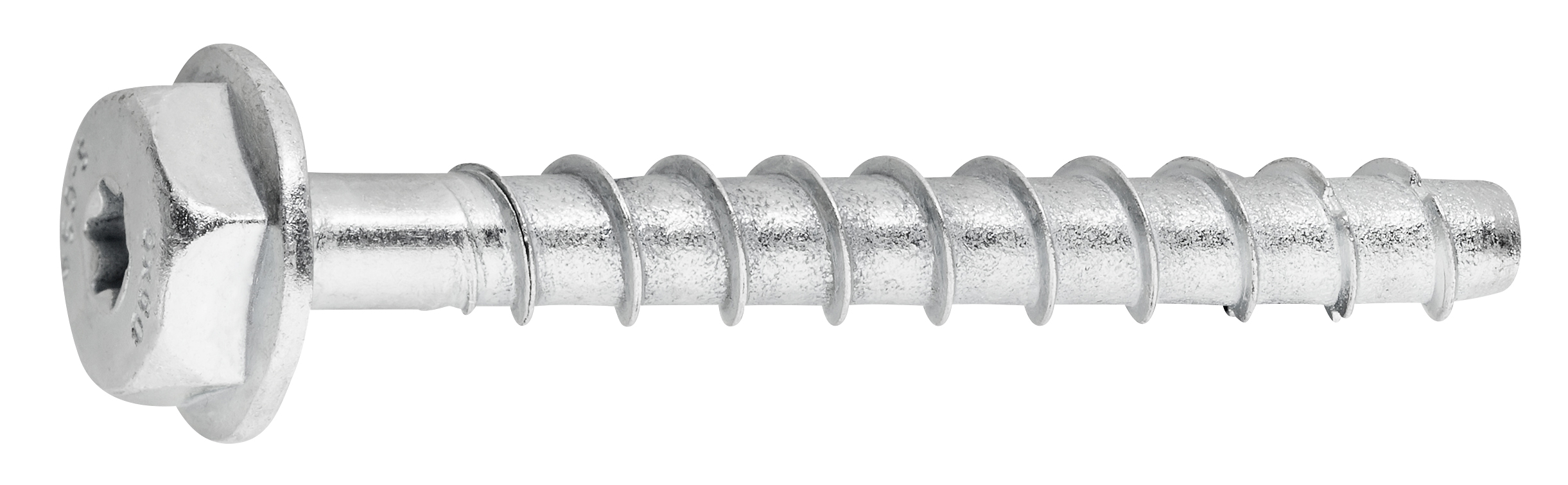

Sormat S-CSA HEX concrete screw with hex flange and Torx drive, manufactured in Finland. The carbon steel screw is cold-formed and provides a reliable fastener strong enough to penetrate even hard materials. The concrete screw features a hardened special thread that forms its own thread in the base material. Surface treatment is electroplated zinc coating (? 5 µm) in accordance with EN ISO 4042. The screw is fully removable. Tensile strength of the screw is 800 MPa. Recommended operating environment: dry indoor conditions. The product has European Technical Approval ETA-16/0945 for concrete and ETA-17/1009 for series fastenings in concrete and precast hollow core slabs. The product is also CE marked. Fire classification up to R120 in concrete installations. The concrete screw is designed for through-installation. Installation steps: 1. Drill a hole according to product specifications. 2. Clean the hole thoroughly. 3. Install the screw through the material to be fastened until the anchor flange contacts the material. We recommend using a suitable size impact screwdriver for installing concrete screws. No predefined torque value. The design allows for small minimum edge and spacing distances between anchors. Package size: 50 pcs. The screw has a partial thread with a thread length of 70 mm. Spanner size AV13, flange diameter 16.5 mm, flange height 5.8 mm. Suitable base materials: concrete, hollow core slab, solid brick, and solid calcium silicate brick. Suitable for fastening into both cracked and uncracked concrete. Drill hole diameter 6 mm. Drill hole depth 65 mm. Thickness of material to be fastened: 45/60 mm. This product description is an automated translation of the original Finnish description.
