CONCRETE SCREW S-CSA P 6X60 PANHEAD, ZINC PLATED 10PCS

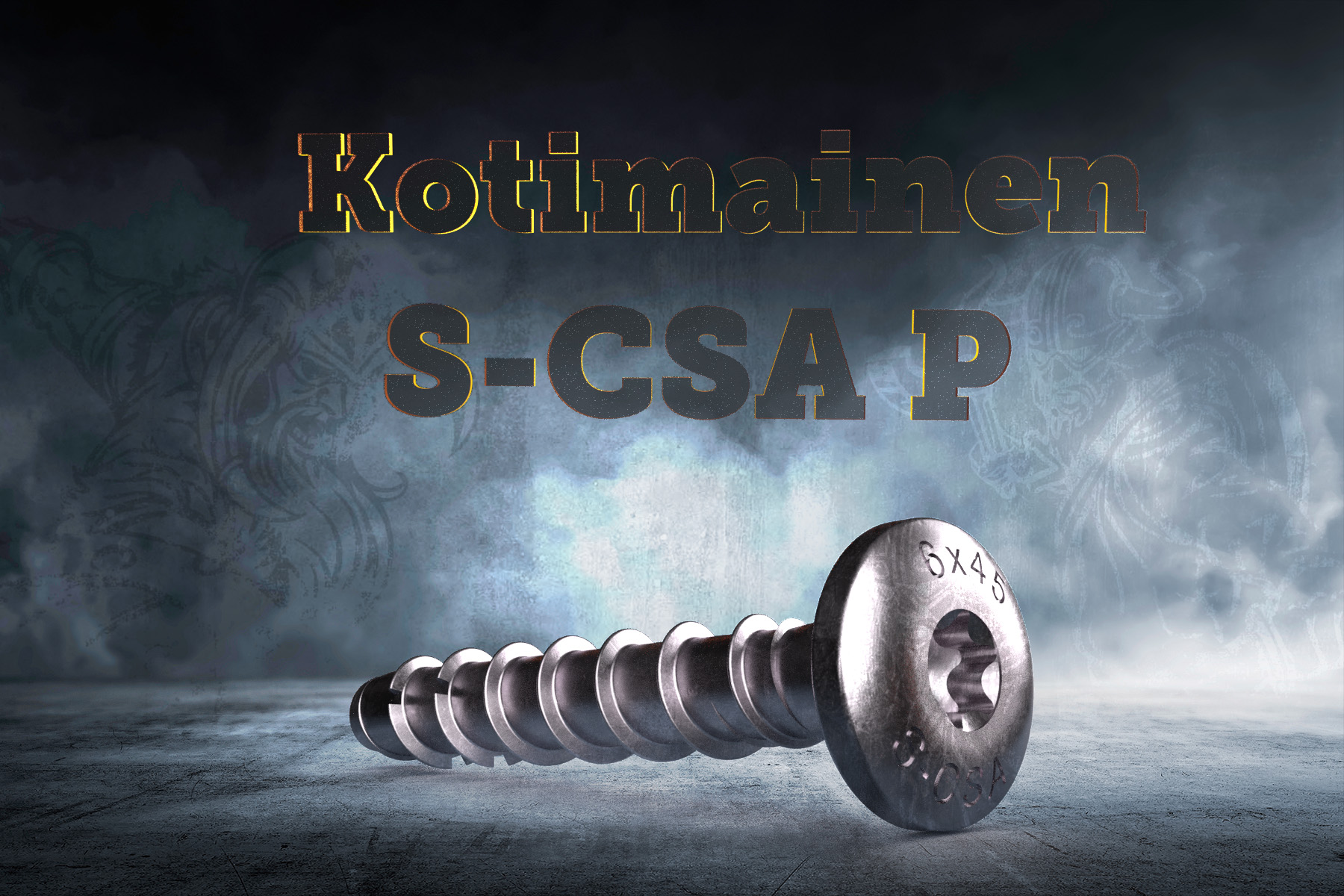

Sormat S-CSA P concrete screw with cup head and Torx drive, manufactured in Finland. The carbon steel screw is cold-formed and provides a reliable fastener strong enough to penetrate even hard materials. The concrete screw features a hardened special thread that forms its own thread in the base material. Surface treatment: electroplated zinc coating (? 5 µm) in accordance with EN ISO 4042. The screw is fully removable. Tensile strength of the screw: 800 MPa. Recommended environment: dry indoor conditions. The product has European Technical Approval ETA-16/0945 for concrete and ETA-17/1009 for series fastenings in concrete and precast hollow core slabs. The product is also CE marked. Fire classification up to R120 in concrete installations. The concrete screw is designed for through-installations. Installation steps: 1. Drill a hole according to the product specifications. 2. Clean the hole thoroughly. 3. Insert the screw through the material to be fastened into the hole until the anchor base contacts the material to be fastened. We recommend using a suitable-sized impact screwdriver for installing concrete screws. No preset torque value is required. The design allows for small minimum edge and spacing distances between anchors. Packaging size: 10 pieces. Packaging type: small pack. The screw has a partial thread with a thread length of 55 mm. Screw head: T30, head diameter 14.5 mm, head height 5 mm. Suitable base materials: concrete, hollow core slab, solid brick, and solid calcium silicate brick. Suitable for fastening into both cracked and uncracked concrete. Drill hole diameter: 6 mm. Drill hole depth: 65 mm. Thickness of material to be fastened: 5/20 mm. This product description is an automated translation of the original Finnish description.
