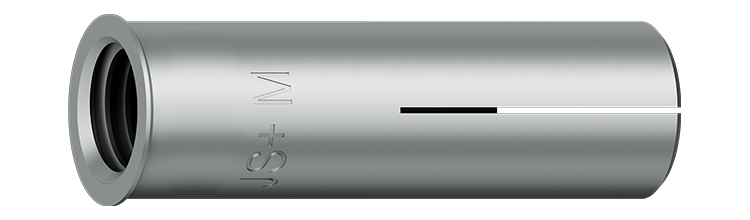

DROP IN ANCHOR COL SORMAT JS+ M10 COLLAR ZINC PLATED 5PCS
Product code
502642837
IP-impact anchored bolt with internal thread (ZN) for anchoring in concrete and stone. ETA-approved and CE-marked, and fire-rated for concrete installations. Recommended environment: dry indoor areas. Installation with a separate impact wrench. Additional information see European Technical Approval ETA-22/0912 and ETA-22/0913. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Hammer set anchor (EC000009)
Fastening provisionOther
Push-through installationno
Pre-positioned installationyes
Spaced installationno
Suitable for concreteyes
Suitable for natural stoneyes
Material sleeveSteel
Surface protectionGalvanic/electrolytic zinc plated
Thread typeMetric
Thread size (metric)10
Drill hole diameter12 mm
Length40 mm
Min. drill hole depth43 mm
With approvalyes
Self boringno
Product codes
SAPDFJ133
STK1324065
PLC502642837
GTIN/EAN6416031943256
Manufacturer part number9640094325
Vendor material number9640094325
Basic information
Package measurements (L x W x H)175 x 110 x 25 mm
Package volume0.481 l
Package weight0.118 kg
Package units10
Package contents5 each
UNSPSC31161502
BrandSORMAT
VendorEJOT SORMAT OY
