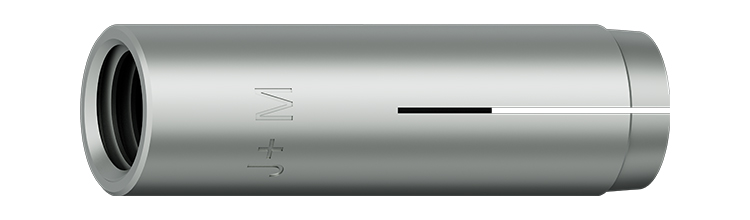

DROP IN ANCHOR SORMAT J+ M8 ZINC PLATED 5PCS
Product code
502634865
IP-impact anchor with internal thread (ZN) for fastening to concrete and stone. Product is ETA-approved and CE-marked, and fire-rated for concrete installations (R120). Recommended environment: dry indoor areas. Installation with separate impact hammer. Additional information see European Technical Approval ETA-22/0912 and ETA-22/0913. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Hammer set anchor (EC000009)
Fastening provisionOther
Push-through installationno
Pre-positioned installationyes
Spaced installationno
Suitable for concreteyes
Suitable for natural stoneyes
Material sleeveSteel
Surface protectionGalvanic/electrolytic zinc plated
Thread typeMetric
Thread size (metric)8
Drill hole diameter10 mm
Length30 mm
Min. drill hole depth33 mm
With approvalyes
Self boringno
Product codes
SAPDFJ131
STK1324056
PLC502634865
GTIN/EAN6416031943133
Manufacturer part number9640094313
Vendor material number9640094313
Basic information
Package measurements (L x W x H)175 x 110 x 25 mm
Package volume0.481 l
Package weight0.062 kg
Package units10
Package contents5 each
UNSPSC31161502
BrandSORMAT
VendorEJOT SORMAT OY
