JUNCTION BOX INDUSTRIAL ABOX PRO 060 AB-L
Product code
1622265

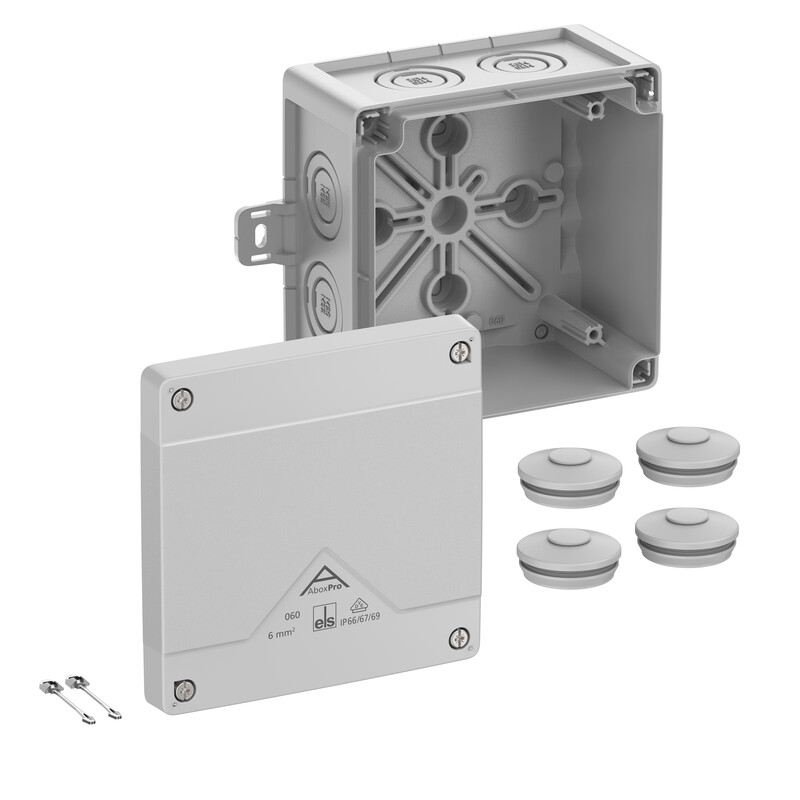

Enclosure, protected to IP66/IP67/IP69, nominal cross-section 6 mm², certified VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (ammonia resistance), DNV (class: ships and offshore installations), metric cable entries M20/M32 (1 rear, 7 half), external mounting points, for installation in industrial environments and unprotected outdoor areas, gray, Ui=1000 V AC, without connectors. Dimensions: 127 x 127 x 75 mm. Includes accessories: 4 double membrane seals IP66 M32 sealing range 13–21 mm, lid drop protection This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Box/housing for surface mounting on the wall/ceiling (EC002600)
ModelJunction box
Equipped withNone
Max. conductor cross section6 mm²
Number of poles0
Number of clamp positions per pole0
ShapeSquare
Mounting methodWall-/ceiling mounting
Mounting in the soilno
Mounting under waterno
Number of inlets8
Inlet from the rearyes
Length127 mm
Width127 mm
Depth75 mm
Number of cable glands included0
Product codes
SAPDFQ543
STK1622265
PLC1622265
GTIN/EAN4013902664245
Manufacturer part number40640101
Vendor material number1622265
Basic information
Package measurements (L x W x H)127 x 75 x 75 mm
Package volume0.714 l
Package weight0.312 kg
Base uniteach
Package units1 / 12 / 396 / 1296
Package contents–
UNSPSC39121332
BrandSPELSBERG
VendorSPELSBERG OY
Documents (4)
Environment and safety
Manufacturer
NameGünther Spelsberg GmbH & Co. KG
Websitewww.spelsberg.fi
Postal addressIm Gewerbepark 1, 58579 Schalksmuehle, Germany
