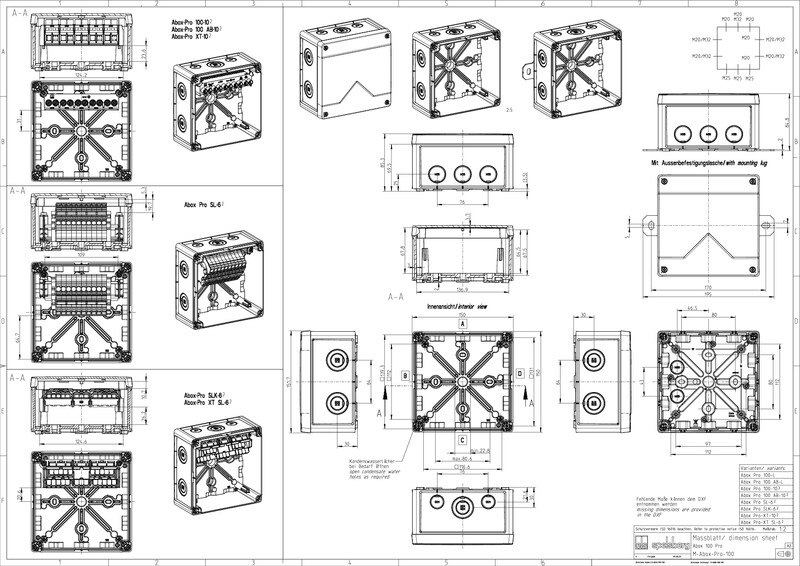

JUNCTION BOX INDUSTRIAL ABOX PRO 100-L/SW
Product code
1622275
Enclosure, protected to IP66/IP67/IP69, nominal cross-section 10 mm², certified VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (ammonia resistance), DNV (class: ships and offshore installations), metric cable entries M20/M25/M32 (2 rear, 10 half), internal mounting points, for installation in industrial environments and unprotected outdoor areas, black, Ui=1000 V AC, without connectors. Dimensions: 152 x 152 x 85 mm. Includes accessories: 4 double membrane seals IP66 M32 sealing range 13–21 mm, lid drop protection This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Box/housing for surface mounting on the wall/ceiling (EC002600)
ModelJunction box
Equipped withNone
Max. conductor cross section10 mm²
Number of poles0
Number of clamp positions per pole0
ShapeSquare
Mounting methodWall-/ceiling mounting
Mounting in the soilno
Mounting under waterno
Number of inlets12
Inlet from the rearyes
Length152 mm
Width152 mm
Depth85 mm
Number of cable glands included0
Product codes
SAPDFQ549
STK1622275
PLC1622275
GTIN/EAN4013902664030
Manufacturer part number41000001
Vendor material number1622275
Basic information
Package measurements (L x W x H)152 x 85 x 85 mm
Package volume1.098 l
Package weight0.422 kg
Base uniteach
Package units1 / 10 / 330 / 700
Package contents–
UNSPSC39121332
BrandSPELSBERG
VendorSPELSBERG OY
Documents (4)
Environment and safety
Manufacturer
NameGünther Spelsberg GmbH & Co. KG
Websitewww.spelsberg.fi
Postal addressIm Gewerbepark 1, 58579 Schalksmuehle, Germany
