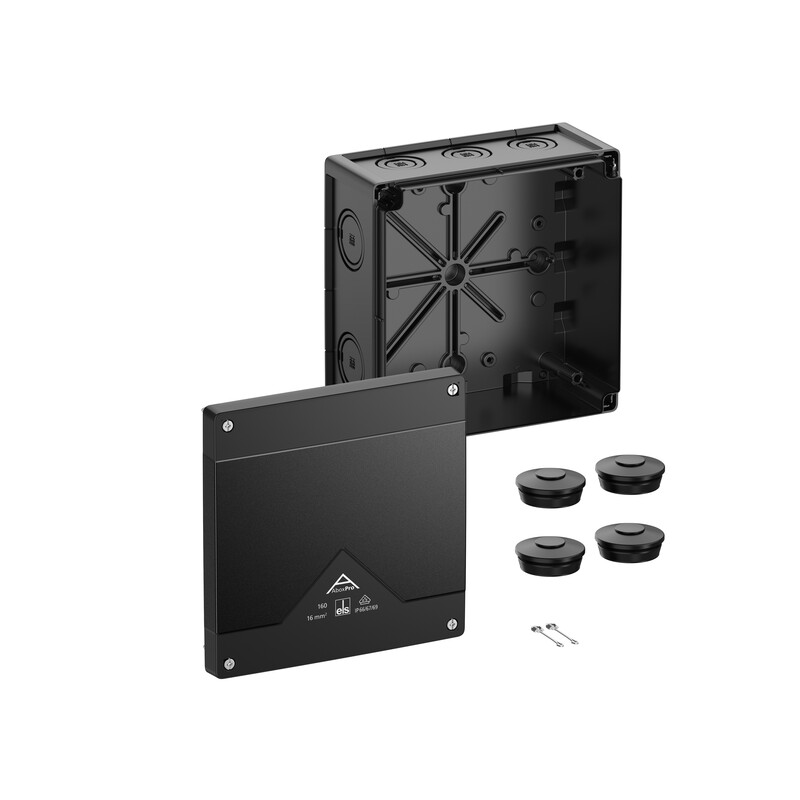

JUNCTION BOX INDUSTRIAL ABOX PRO 160-L/SW
Product code
1622279
Enclosure, protection class IP66/IP67/IP69, nominal cross-section 16 mm², certified VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (ammonia resistance), DNV (class: ships and offshore installations), metric cable entries M20/M32/M40 (2 rear, 10 half), internal mounting points, for installation in industrial environments and unprotected outdoor areas, black, Ui=1000 V AC, without connectors. Dimensions: 182 x 182 x 90 mm. Includes accessories: 4 double membrane seals IP66 M40 sealing range 17–28 mm, lid drop protection This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Box/housing for surface mounting on the wall/ceiling (EC002600)
ModelJunction box
Equipped withNone
Max. conductor cross section16 mm²
Number of poles0
Number of clamp positions per pole0
ShapeSquare
Mounting methodWall-/ceiling mounting
Mounting in the soilno
Mounting under waterno
Number of inlets12
Inlet from the rearyes
Length182 mm
Width182 mm
Depth90 mm
Number of cable glands included0
Product codes
SAPDFQ551
STK1622279
PLC1622279
GTIN/EAN4013902663743
Manufacturer part number41600001
Vendor material number1622279
Basic information
Package measurements (L x W x H)182 x 90 x 90 mm
Package volume1.474 l
Package weight0.623 kg
Base uniteach
Package units1 / 10 / 240 / 380
Package contents–
UNSPSC39121332
BrandSPELSBERG
VendorSPELSBERG OY
Documents (4)
Environment and safety
Manufacturer
NameGünther Spelsberg GmbH & Co. KG
Websitewww.spelsberg.fi
Postal addressIm Gewerbepark 1, 58579 Schalksmuehle, Germany
