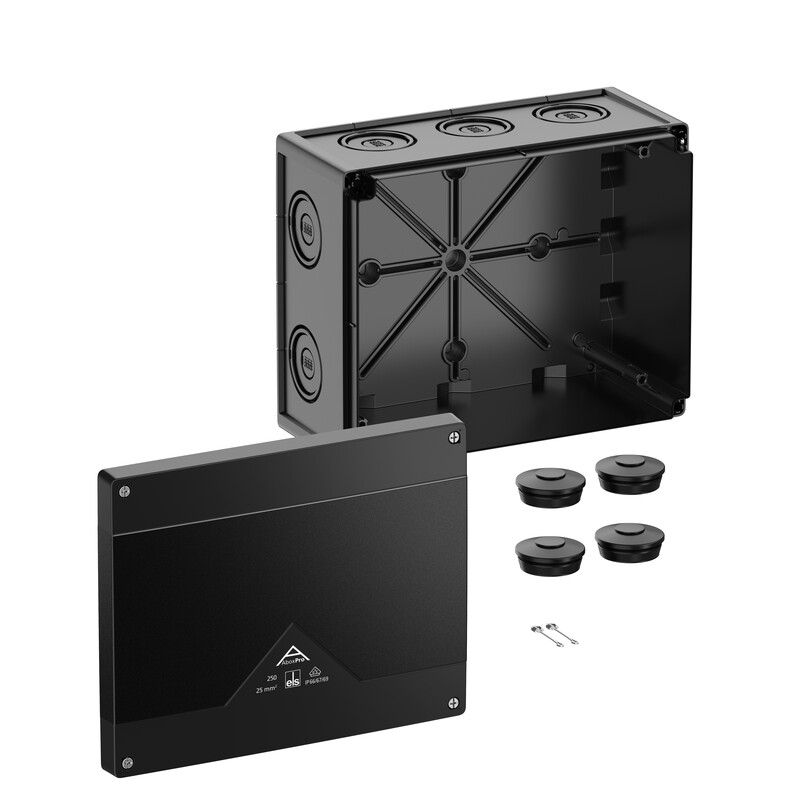

JUNCTION BOX INDUSTRIAL ABOX PRO 250-L/SW
Product code
1622283
Enclosure, Protection rating IP66/IP67/IP69, Nominal cross-section 25 mm², Certified VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (ammonia resistance), DNV (class: ships and offshore installations), metric cable entries M20/M25/M40/M50, (4 rear, 10 half), internal mounting points, for installations in industrial environments and unprotected outdoor areas, black, Ui=1000 V AC, without connectors. Dimensions: 252 x 202 x 120 mm. Includes accessories: 4 double membrane seals IP66 M40 sealing range 17–28 mm, lid drop protection This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Box/housing for surface mounting on the wall/ceiling (EC002600)
ModelJunction box
Equipped withNone
Max. conductor cross section35 mm²
Number of poles0
Number of clamp positions per pole0
ShapeRectangular
Mounting methodWall-/ceiling mounting
Mounting in the soilno
Mounting under waterno
Number of inlets14
Inlet from the rearyes
Length202 mm
Width252 mm
Depth120 mm
Number of cable glands included0
Product codes
SAPDFQ553
STK1622283
PLC1622283
GTIN/EAN4013902663576
Manufacturer part number42500001
Vendor material number1622283
Basic information
Package measurements (L x W x H)202 x 120 x 120 mm
Package volume2.909 l
Package weight1.034 kg
Base uniteach
Package units1 / 4 / 84 / 380
Package contents–
UNSPSC39121332
BrandSPELSBERG
VendorSPELSBERG OY
Documents (4)
Environment and safety
Manufacturer
NameGünther Spelsberg GmbH & Co. KG
Websitewww.spelsberg.fi
Postal addressIm Gewerbepark 1, 58579 Schalksmuehle, Germany
