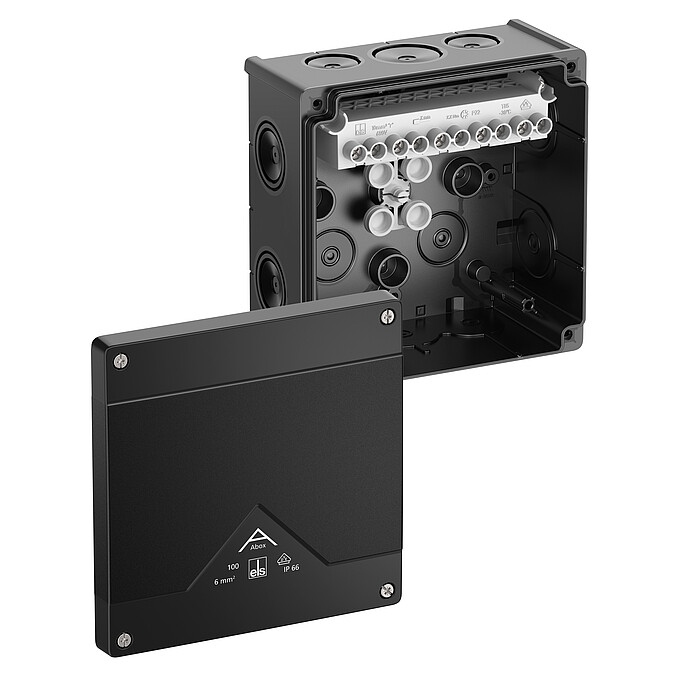

JUNCTION BOX SPELSBERG ABOX 100-10MM2/SW BLACK
Product code
1622333

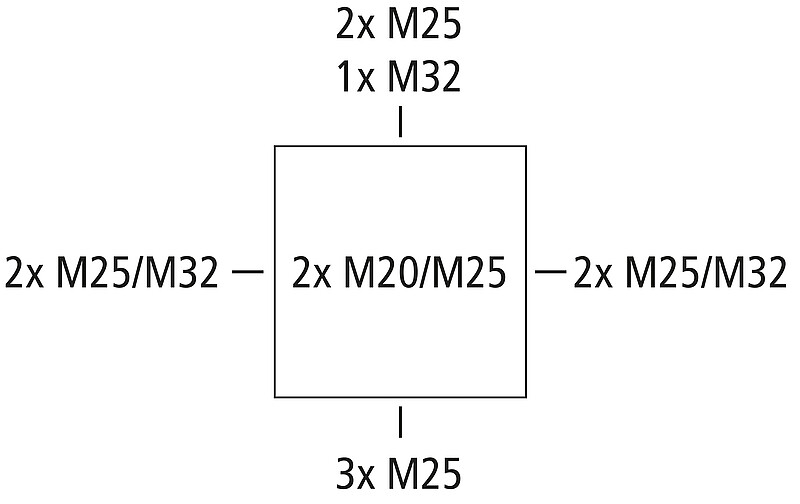

Cable gland housing, protected to IP66 rating, nominal cross-section 10 mm², certified VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (ammonia resistance), self-sealing flexible cable gland seals, M20/M25/M32, sealing range 8 - 28 mm, (2 rear, 10 half) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Box/housing for surface mounting on the wall/ceiling (EC002600)
ModelJunction box
Equipped withScrewed terminal
Max. conductor cross section10 mm²
Number of poles5
ShapeSquare
Mounting methodWall-/ceiling mounting
Number of inlets12
Inlet from the rearyes
Length152 mm
Width152 mm
Depth80 mm
Type of housing feed-throughSeal membrane
MaterialPlastic
Halogen freeyes
Surface protectionOther
Product codes
SAPDMR006
STK1622333
PLC1622333
GTIN/EAN4013902660636
Manufacturer part number81002001
Vendor material number1622333
Basic information
Package measurements (L x W x H)152 x 80 x 80 mm
Package volume0.973 l
Package weight0.4 kg
Base uniteach
Package units1 / 20 / 240
Package contents–
UNSPSC39121332
BrandSPELSBERG
VendorSPELSBERG OY
Documents (5)
Certificates
Images
Brochures & documents
Links
Environment and safety
Manufacturer
NameGünther Spelsberg GmbH & Co. KG
Websitewww.spelsberg.fi
Postal addressIm Gewerbepark 1, 58579 Schalksmuehle, Germany
