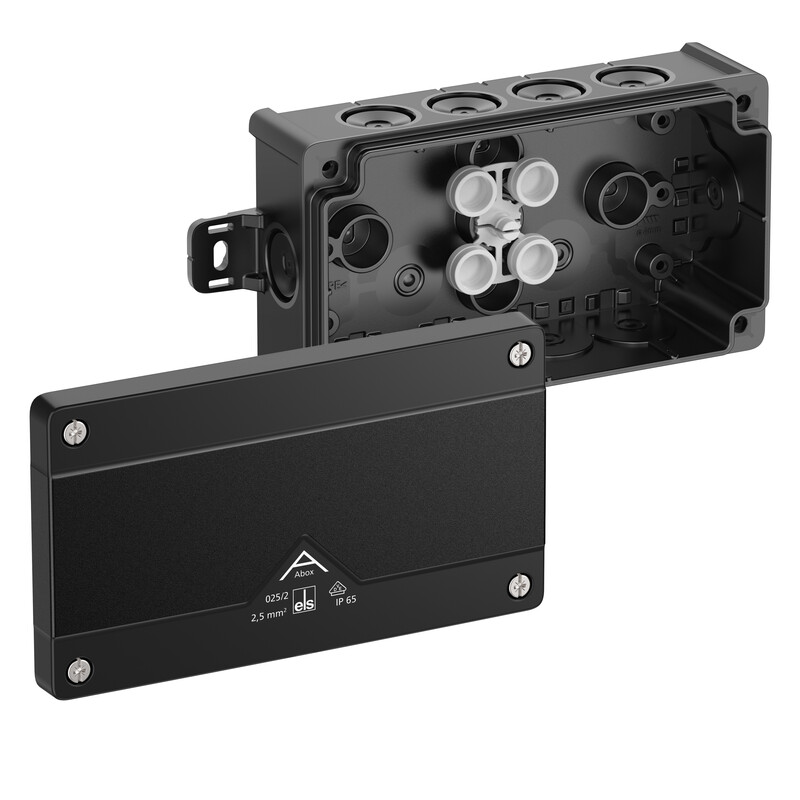

JUNCTION BOX W. MEMBRAIN ABOX ABOX 025/2 AB-L/SW
Product code
1622167
Enclosure, protected to IP66, nominal cross-section 2.5 mm², certified VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (ammonia resistance), self-sealing flexible cable glands, M20, sealing range 4 - 16 mm, (2 rear, 10 half), external mounting points, for indoor and protected outdoor installations, black, Ui=1000 V AC, without connectors Dimensions: 152 x 87 x 52 mm This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Box/housing for surface mounting on the wall/ceiling (EC002600)
ModelJunction box
Equipped withNone
Max. conductor cross section2.5 mm²
Number of poles0
Number of clamp positions per pole0
ShapeRectangular
Mounting methodWall-/ceiling mounting
Mounting in the soilno
Mounting under waterno
Number of inlets12
Inlet from the rearyes
Length87 mm
Width152 mm
Depth52 mm
Number of cable glands included0
Product codes
SAPDFQ504
STK1622167
PLC1622167
GTIN/EAN4013902663309
Manufacturer part number80200301
Vendor material number1622167
Basic information
Package measurements (L x W x H)87 x 52 x 52 mm
Package volume0.235 l
Package weight0.16 kg
Base uniteach
Package units1 / 36 / 864 / 3240
Package contents–
UNSPSC39121332
BrandSPELSBERG
VendorSPELSBERG OY
Documents (5)
Certificates
Brochures & documents
Links
Environment and safety
Manufacturer
NameGünther Spelsberg GmbH & Co. KG
Websitewww.spelsberg.fi
Postal addressIm Gewerbepark 1, 58579 Schalksmuehle, Germany
