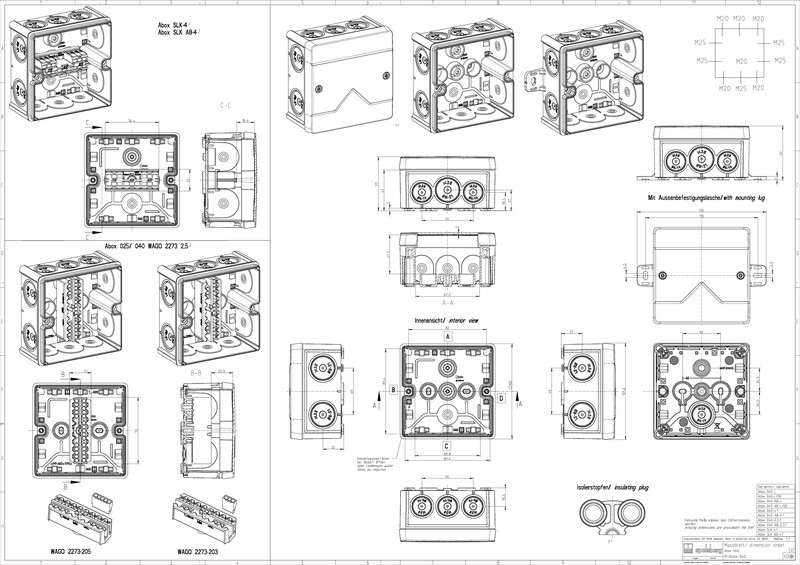

JUNCTION BOX W. MEMBRAIN ABOX ABOX 040-4
Product code
1622173
Features
- Protected to IP66 rating
- Rated cross-section 4 mm˛
- Certified VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)
- DLG (ammonia resistance)
- Self-sealing, flexible cable gland seals
- M20/M25
- Sealing range 4 - 21 mm
- (1 Back, 10 Half)
- Internal mounting points
- For indoor installations and protected outdoor installations
- Gray
- Ui=400 V AC
- In=32 Ampere
- Internal: 5 pieces of 4-pole screwless spring clamp connectors Wago 773-60
- Max. rated cross-section according to DIN EN 60998: 4 mm˛, clamped cross-section per terminal: 4 x 1.5–4.0 mm˛
- Rigid Cu/Al (follow installation instructions)
- Dimensions: 102 x 102 x 57 mm.
Product details
Technical specifications
Product class (ETIM)Box/housing for surface mounting on the wall/ceiling (EC002600)
ModelJunction box
Equipped withPush-in clamp
Max. conductor cross section4 mm²
Number of poles5
Number of clamp positions per pole4
ShapeSquare
Mounting methodWall-/ceiling mounting
Mounting in the soilno
Mounting under waterno
Number of inlets11
Inlet from the rearyes
Length102 mm
Width102 mm
Depth57 mm
Number of cable glands included0
Product codes
SAPDFQ510
STK1622173
PLC1622173
GTIN/EAN4013902661411
Manufacturer part number80442001
Vendor material number1622173
Basic information
Package measurements (L x W x H)102 x 102 x 57 mm
Package volume0.593 l
Package weight0.14 kg
Base uniteach
Package units1 / 60 / 1080 / 2520
Package contents–
UNSPSC39121332
BrandSPELSBERG
VendorSPELSBERG OY
Documents (4)
Environment and safety
Manufacturer
NameGünther Spelsberg GmbH & Co. KG
Websitewww.spelsberg.fi
Postal addressIm Gewerbepark 1, 58579 Schalksmuehle, Germany
