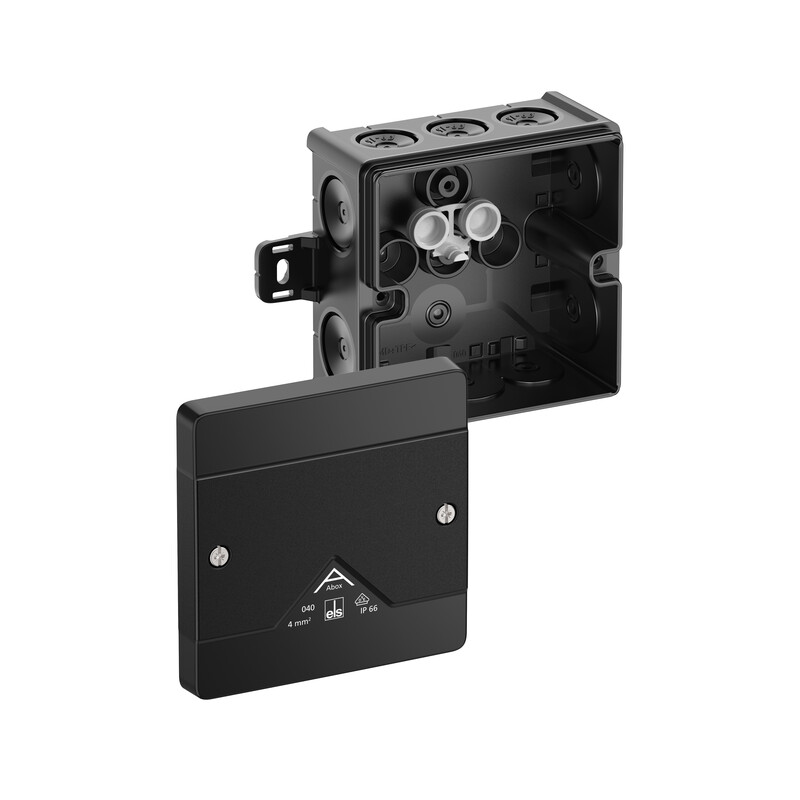

JUNCTION BOX W. MEMBRAIN ABOX ABOX 040 AB-L/SW
Product code
1622178
Enclosure, protected to IP66, nominal cross-section 4 mm², certified VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (ammonia resistance), self-sealing flexible cable glands, M20/M25, sealing range 4 - 21 mm, (1 rear, 10 half), external mounting points, for indoor and protected outdoor installations, black, Ui=1000 V AC, without connectors Dimensions: 102 x 102 x 57 mm This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Box/housing for surface mounting on the wall/ceiling (EC002600)
ModelJunction box
Equipped withNone
Max. conductor cross section4 mm²
Number of poles0
Number of clamp positions per pole0
ShapeSquare
Mounting methodWall-/ceiling mounting
Mounting in the soilno
Mounting under waterno
Number of inlets11
Inlet from the rearyes
Length102 mm
Width102 mm
Depth57 mm
Number of cable glands included0
Product codes
SAPDFQ513
STK1622178
PLC1622178
GTIN/EAN4013902661688
Manufacturer part number80400101
Vendor material number1622178
Basic information
Package measurements (L x W x H)102 x 57 x 57 mm
Package volume0.331 l
Package weight0.13 kg
Base uniteach
Package units1 / 60 / 720 / 2520
Package contents–
UNSPSC39121332
BrandSPELSBERG
VendorSPELSBERG OY
Documents (3)
Environment and safety
Manufacturer
NameGünther Spelsberg GmbH & Co. KG
Websitewww.spelsberg.fi
Postal addressIm Gewerbepark 1, 58579 Schalksmuehle, Germany
