MODULE ENCLOSURE SURFACE AK 24 -L
Product code
3429038

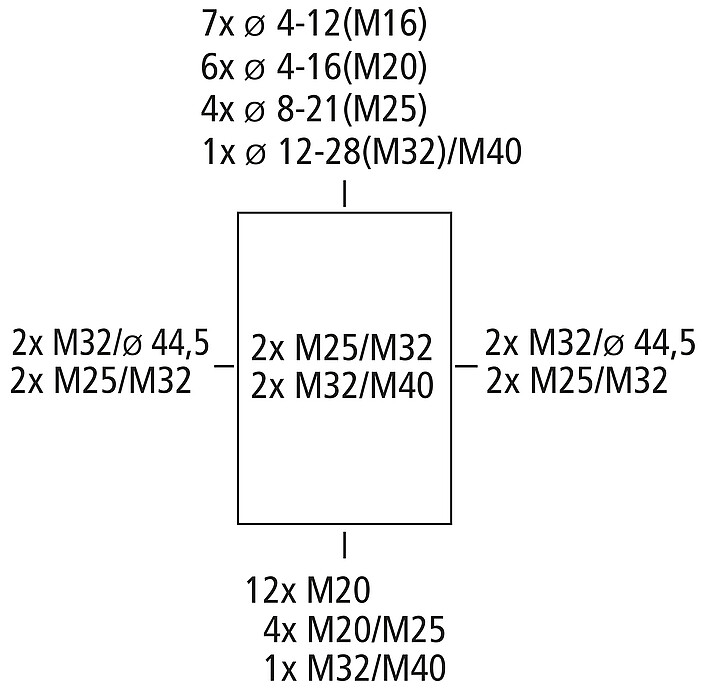

Modular enclosure, protected to IP65 rating, 2 rows, 24 available modules, rated operating voltage: 400V AC, rated insulation voltage: 1000V AC, 1500V DC, top side with self-sealing soft cable entries for tool-free cable routing, bottom side with metric glands for cable entries using gland seals and/or double membrane seals, for standard indoor installations. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Small distribution board (EC000214)
Mounting methodSurface mounted
Number of rows2
Number of openings for socket outlets2
Width in number of modular spacings24
Type of coveringDoor
Cover modelWith notch
Type of doorDouble
Transparent cover/dooryes
Signal passing dooryes
Type of closureOther
Housing materialPlastic
Inner depth85 mm
Earthing terminal blockno
With N-disconnect slideno
Neutral terminal blockno
Product codes
SAPDMQ976
STK3429038
PLC3429038
GTIN/EAN4013902704781
Manufacturer part number734 424 03
Vendor material number3429038
Basic information
Package measurements (L x W x H)299 x 407 x 129 mm
Package volume15.698 l
Package weight1.986 kg
Base uniteach
Package units1 / 72
Package contents–
UNSPSC39121304
BrandSPELSBERG
VendorSPELSBERG OY
Documents (3)
Links
Environment and safety
Manufacturer
NameGünther Spelsberg GmbH & Co. KG
Websitewww.spelsberg.fi
Postal addressIm Gewerbepark 1, 58579 Schalksmuehle, Germany
