ANTENNA CABLE ECOFLEX 10 PLUS 50ohm Eca

Ecoflex 10 PLUS 50 ohm cable is designed for 3/4/5G and WiFi signals.

The center conductor in the Ecoflex 10 Plus coaxial cable consists of an aluminum core with a copper coating. This reduces weight and improves characteristics.

Ecoflex cables are used in WLAN networks, LA and radio amateur antennas, remote control systems for water and other facilities, and other professional applications requiring high-quality 50 ohm coaxial cable.

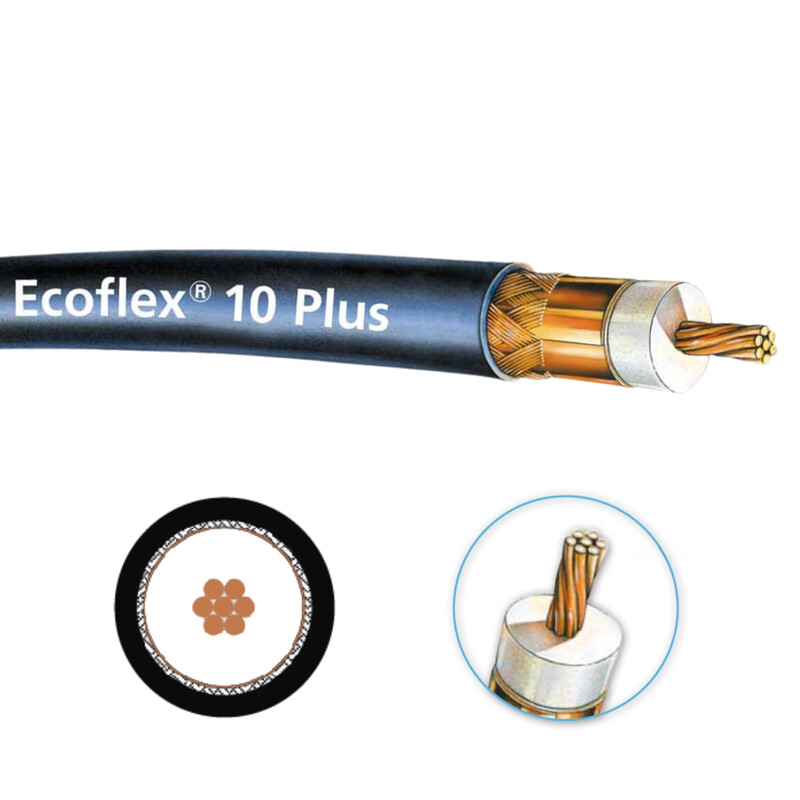

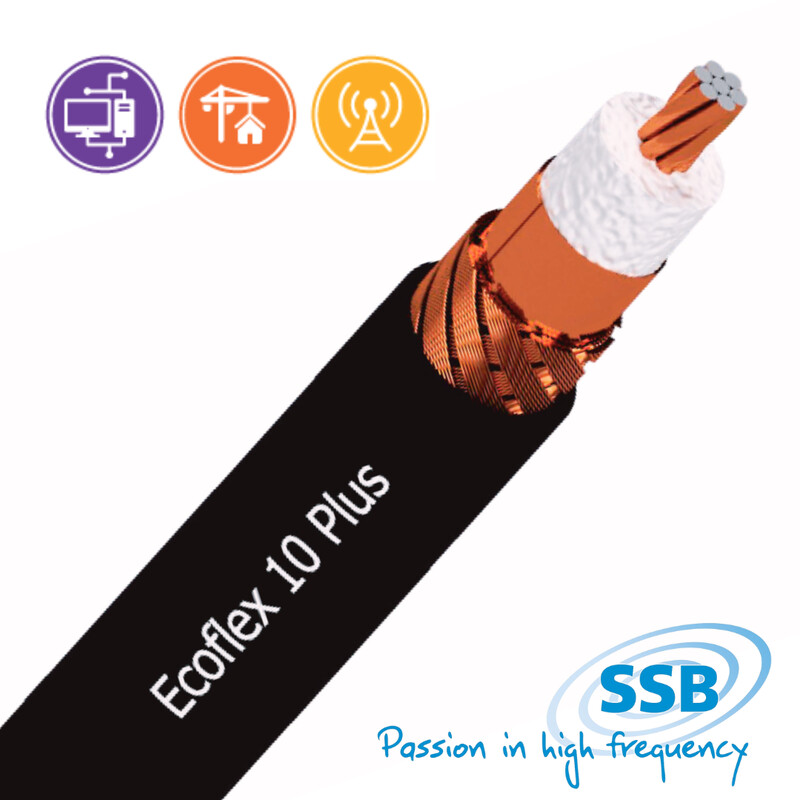

Ecoflex® 10 PLUS coaxial cable

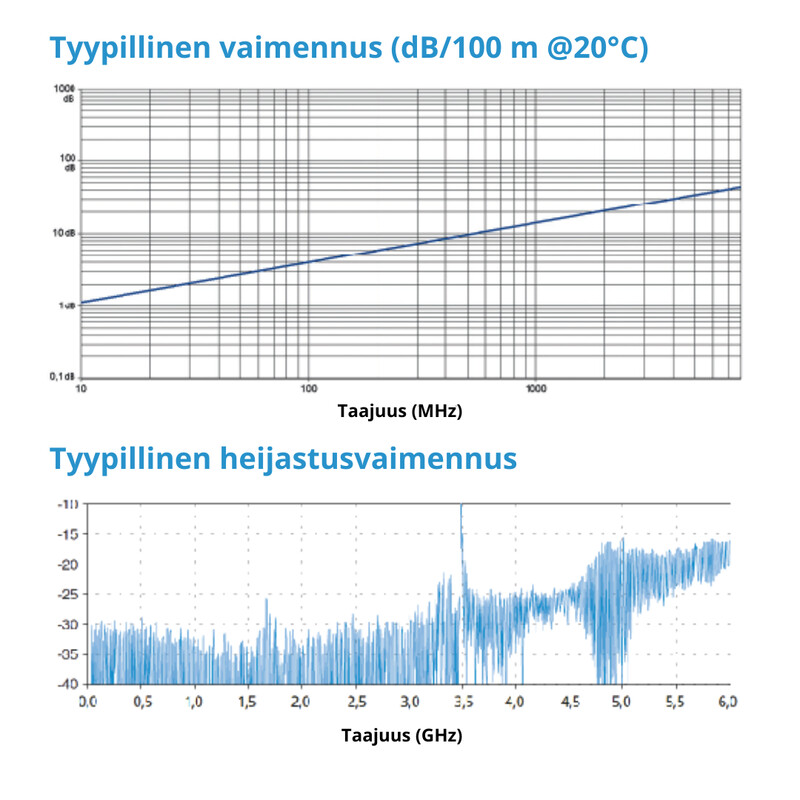

• Developed from Ecoflex® 10 standard with even lower losses at high frequencies, up to 8 GHz.
• Impedance 50 ohm
• Outer diameter of coaxial cable 10.2 mm
• Outer insulation black UV-stabilized PVC
• Braided copper shield, 75% coverage
• PE-coated copper foil, 100% coverage
• Inner insulation PE foam with coating 7.2 mm
• Center conductor 7 x 1.0 mm (diam. 2.85 mm), hybrid, twisted aluminum with copper coating
• Velocity factor 0.85
• Capacitance 78 pF / meter
• Minimum bending radius, one-time bend 40 mm, repeated bend 80 mm
• Weight 9.6 kg / 100m
• Temperature range: Transport and fixed installation -55 ... +85°, Flexible use -40 ... +85°
• Complies with RoHS directive (2011/65/EC)
• CPR classification: Eca

This product description is an automated translation of the original Finnish description.
