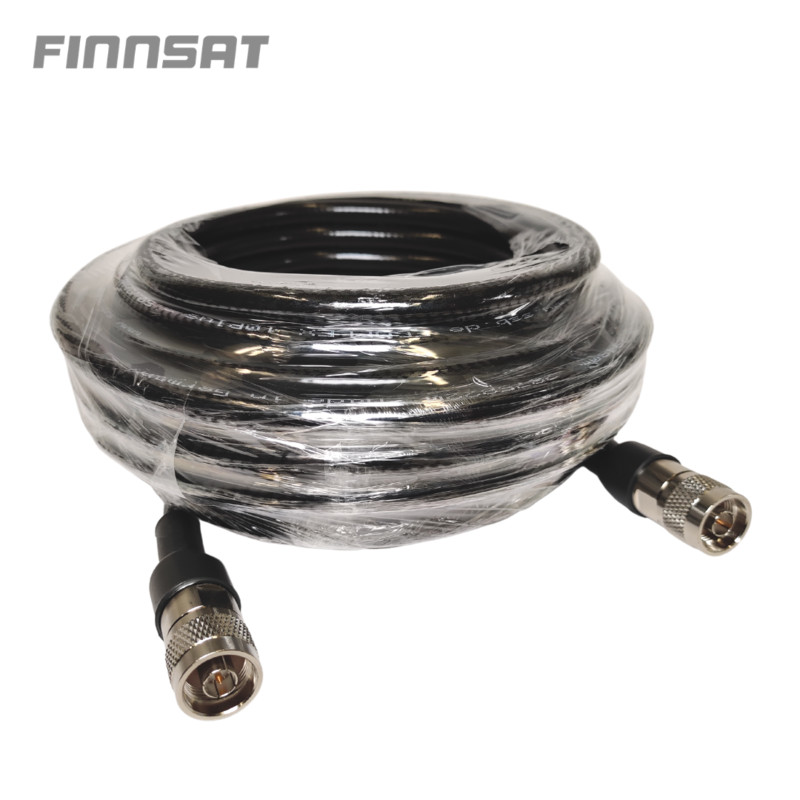

COUPLING CABLE N-U/N-U 10M ECOFLEX10PLUS

Finnsat pre-made cable 10 meters with N-male connectors. Cable is a high-quality, low-loss Ecoflex10 Plus 50 ohm.

Ideal for installation between indoor and outdoor antennas for 5G/4G/3G. Pre-terminated connections reduce installation time.

POPULATION SHELTER PASSIVE REPEATER

Finnsat FSxxNN coaxial cable jumpers are used, for example, in population shelter installations (PS).

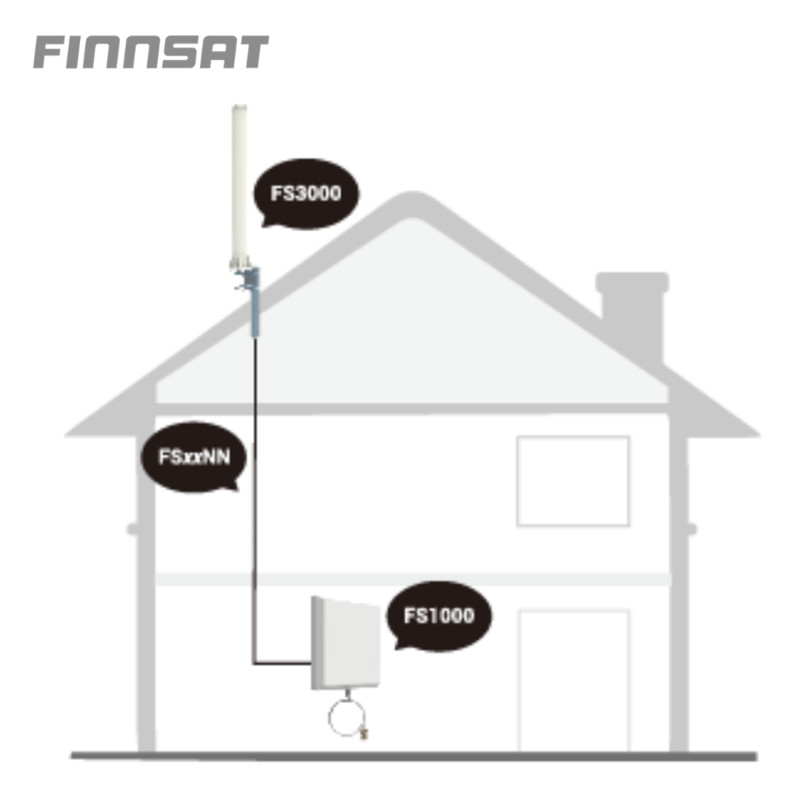

The passive repeater is built using the omnidirectional Finnsat FS3000 antenna as the outdoor antenna and the FS1000 panel antenna inside. The intermediate cable is routed through a protected path into the shelter, and the length is selected according to the distance.

Finnsat pre-made cables are also available in other lengths, for example, FS20NN is the same cable in a 20-meter length.

FEATURES

• 50 ohm coaxial cable jumper
• Length 10 meters

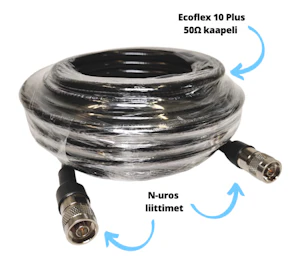

• Cable Ecoflex10 Plus
• Cable outer diameter 10.2 mm

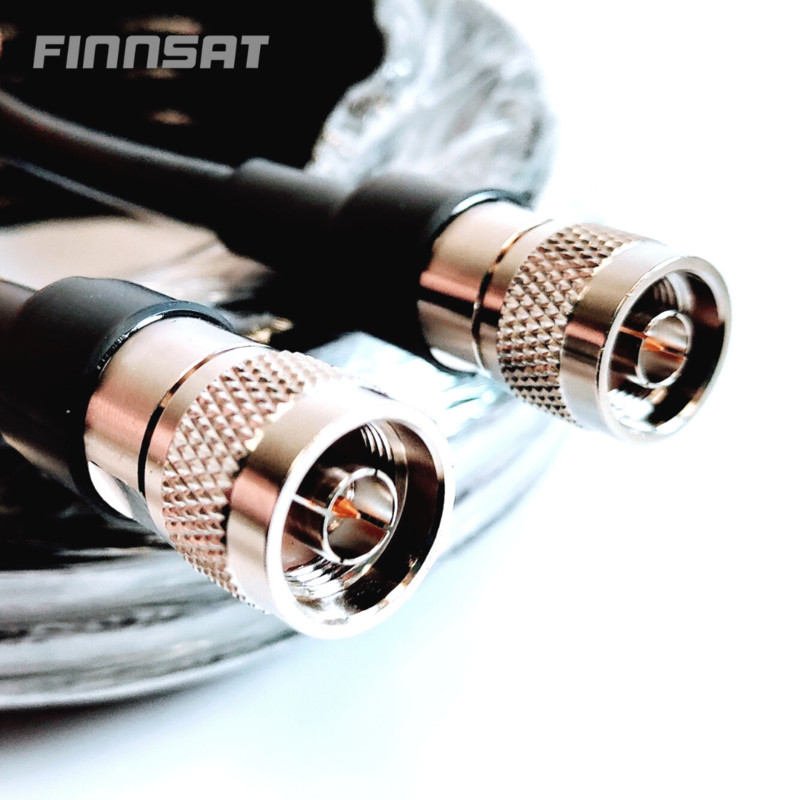

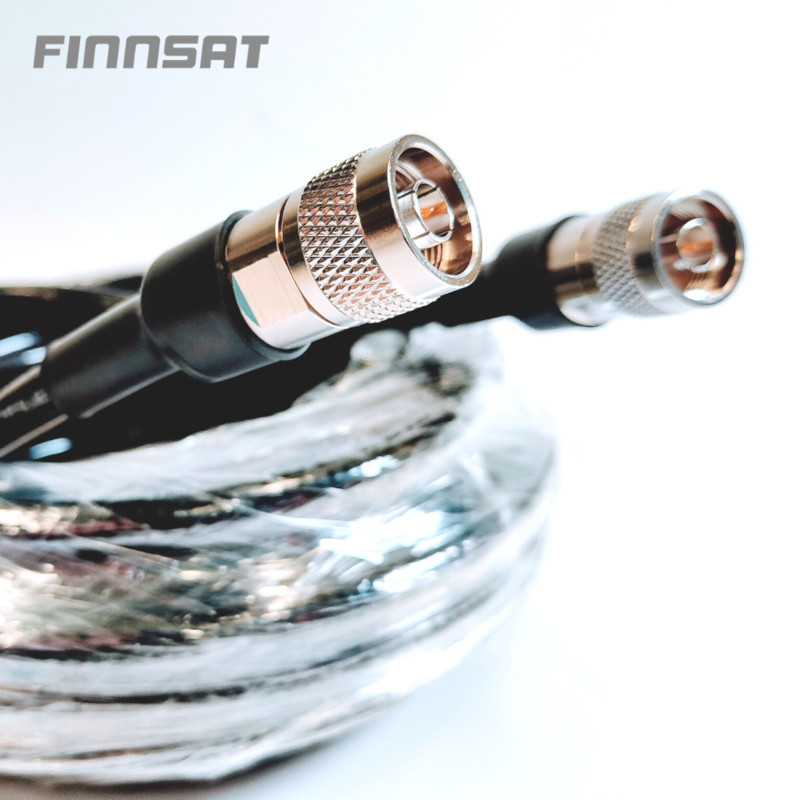

• Connectors N-male/N-male
• Connector outer diameter 22.0 mm

This product description is an automated translation of the original Finnish description.
