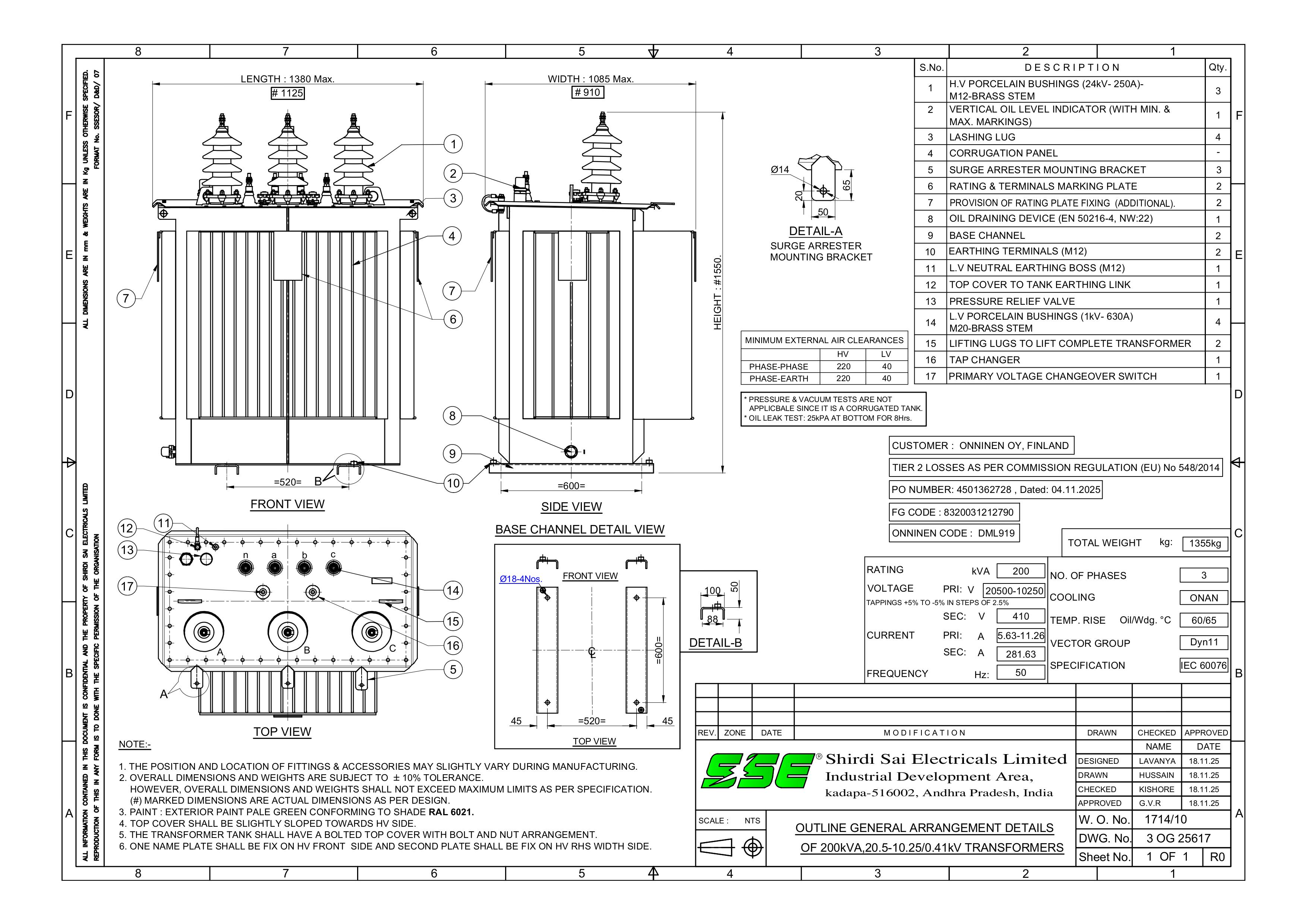

DISTRIBUTION TRANSFORMER SSE T2 200 20-10/0.4
Product code
DML919
Tier 2 distribution transformer with two high-voltage sides and an intermediate switching device, 200 kVA. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Distribution transformer (EC003522)
Primary voltage20.5 kV
Secondary voltage 10.41 kV
Secondary voltage 20.41 kV
With plug-type cable connectionsno
No-load loss258 W
Load loss (secondary voltage 1)2217 W
Power rating200 kVA
Tap changer+/- 2 x 2.5 %
Type of transformerMineral oil (ONAN)
Switching transformerDyn11
Frequency50 Hz
Weight total1250 kg
Length1130 mm
Height1580 mm
Width910 mm
Product codes
SAPDML919
PLCDML919
Manufacturer part number8320031212790
Vendor material number8320031212790
Basic information
Package measurements (L x W x H)1180 x 1920 x 1020 mm
Package volume2310.912 l
Package weight1765 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121001
BrandSSE
VendorSHIRDI SAI ELECTRICALS LIMITED
