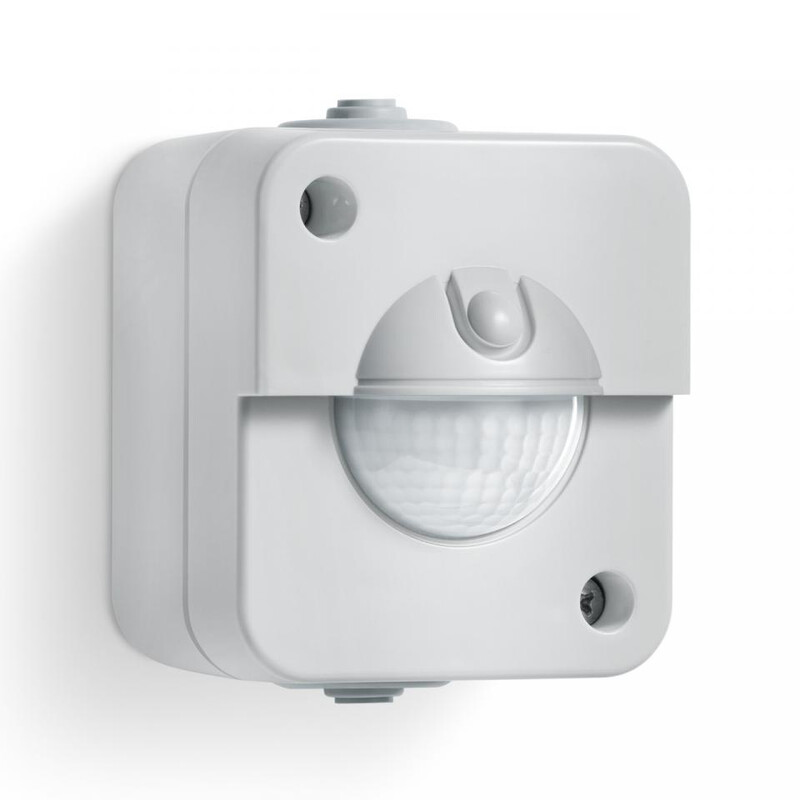

MOTION DETECTOR IR 180 AP EASY IP54 HA
Product code
2604598

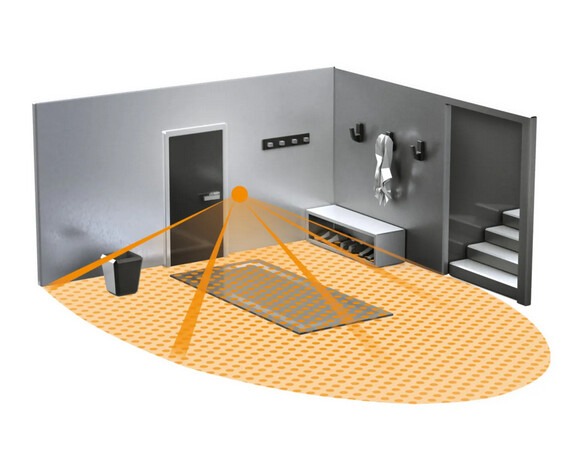

Passive infrared technology (PIR) is suitable for outdoor motion detection and indoor motion and presence detection. PIR detection identifies objects that emit thermal radiation and move within the monitoring area. The direction of movement within the monitoring area affects the detection range. The detection range for perpendicular motion is approximately one-third of the maximum detection range for lateral motion. PIR-based HighBay detectors are suitable for monitoring high-bay warehouses when installed up to a height of 16 m. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Movement sensor/presence detector complete (EC000133)
ModelMovement sensor
Constant light controlno
HVAC-controlno
Forced switch onno
Forced switch offyes
Animal zoneno
Creep-under protectionyes
Networkableyes
Optimum mounting height1.1 m
Staircase light controllerno
Bridging switchyes

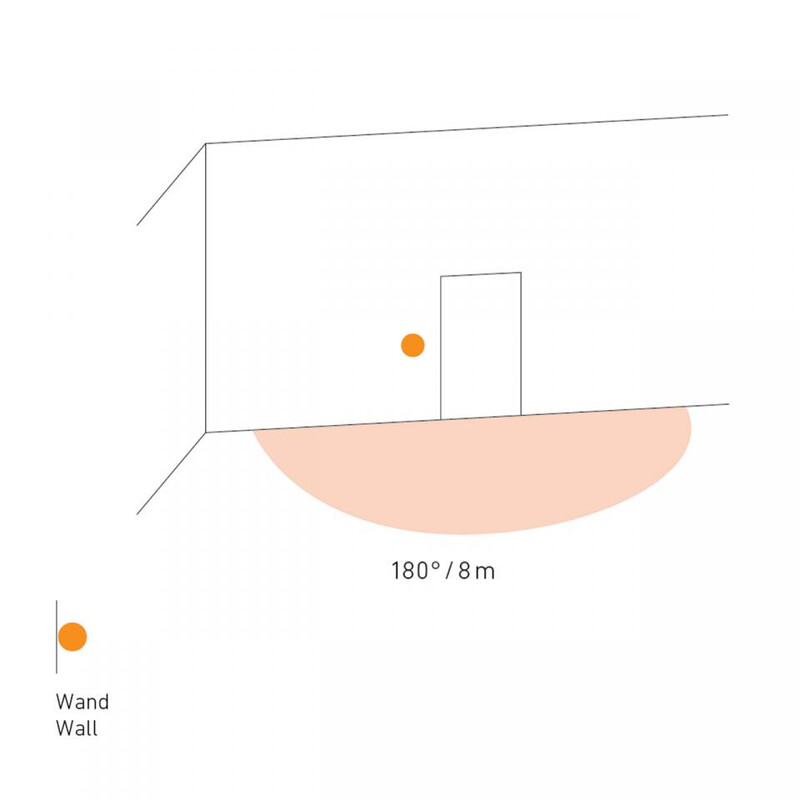

Max. reach sideways8 m
Max. reach frontally8 m
Diameter reach on floor6 m
Suitable for wireless transmissionno
Product codes
SAPDBL284
STK2604598
PLC2604598
GTIN/EAN4007841066048
Manufacturer part number066048
Vendor material number2604598
Basic information
Package measurements (L x W x H)75 x 85 x 15 mm
Package volume0.096 l
Package weight0.299 kg
Base uniteach
Package units1 / 30
Package contents–
UNSPSC46171608
BrandSTEINEL
VendorHEDTEC OY AB
