MOTION DETECTOR IS 2140 ECO 140 IP54 WA BL
Product code
2604431
PIR sensor on wall
Features- power: 2000 W (res.)

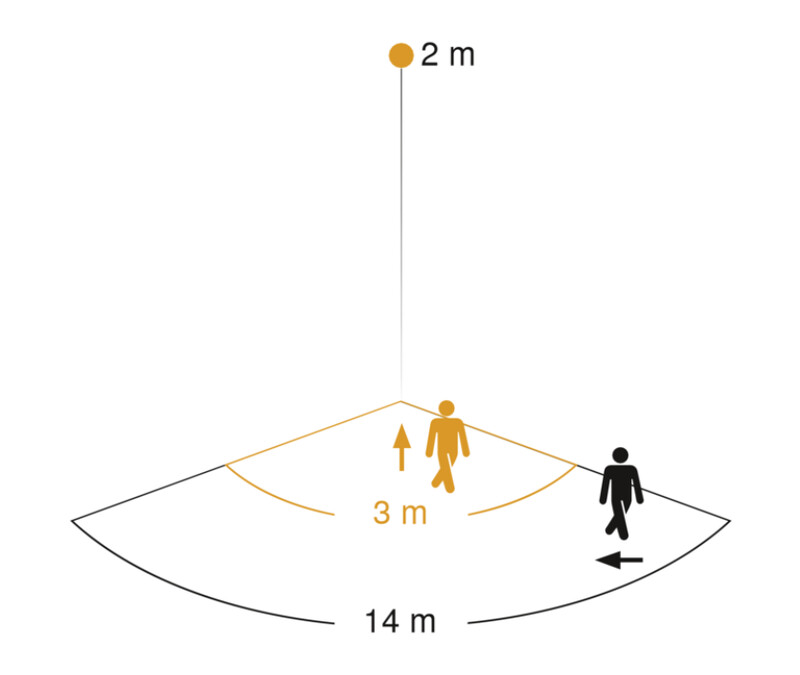

- operating angle: 140 degrees
- opening angle: 90 degrees
- operating distance: max. 14 m (rad.)
- switch-on time: 8 s - 35 min.
- dusk sensor: 2-2000 lux
- enclosure class: IP54
- protection class: II
Product details
Technical specifications
Product class (ETIM)Movement sensor/presence detector complete (EC000133)
ModelMovement sensor
Constant light controlno
HVAC-controlno
Forced switch onno
Forced switch offno
Animal zoneno
Creep-under protectionyes
Background monitoringno
Networkableyes
Scan angle140 °
Optimum mounting height2 m
Staircase light controllerno
Bridging switchyes
Max. reach sideways14 m
Max. presence range239 m²
Product codes
SAPCEY094
STK2604431
PLC2604431
GTIN/EAN4007841034689
Manufacturer part number034689
Vendor material number2604431
Basic information
Package measurements (L x W x H)76 x 92 x 155 mm
Package volume1.084 l
Package weight0.19 kg
Base uniteach
Package units1 / 36
Package contents–
UNSPSC46171608
BrandSTEINEL
VendorHEDTEC OY AB
Documents (5)
Brochures & documents
Links
Environment and safety
Sustainability categories
Energy efficiency
Features
emissions calculated according to EN 15821:2010Yes
Motion sensorYes
Twilight sensorYes
