MOTION DETECTOR IS 2140 ECO 140 IP54 WA WH

Product code
2604430

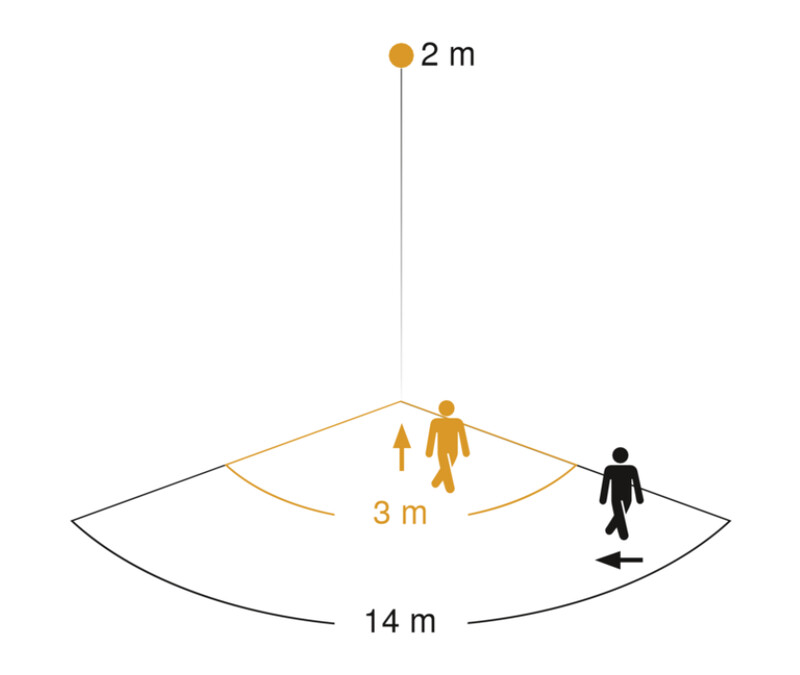

White Steinel PIR sensor for wall mounting. Operating distance can be set between 12-14 meters by rotating the lens 90°. Features
  • power: 2000 W (res.)
  • operating angle: 140°
  • opening angle: 90°
  • operating distance: max. 14 m (tang.)
  • switch-on time: 8 s - 35 min.
  • dusk-to-dawn switch: 2-2000 lux
  • enclosure rating: IP54
  • protection class: II
This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Movement sensor/presence detector complete (EC000133)
ModelMovement sensor
Constant light controlno
HVAC-controlno
Forced switch onno
Forced switch offno
Animal zoneno
Creep-under protectionyes
Background monitoringno
Networkableyes
Scan angle140 °
Optimum mounting height2 m
Staircase light controllerno
Bridging switchyes
Max. reach sideways14 m
Max. presence range239 m²

Product codes

SAPCEY100
STK2604430
PLC2604430
GTIN/EAN4007841034672
Manufacturer part number034672
Vendor material number2604430

Basic information

Package measurements (L x W x H)90 x 75 x 155 mm
Package volume1.046 l
Package weight0.19 kg
Base uniteach
Package units1 / 36 / 216
Package contents
UNSPSC46171608
BrandSTEINEL
VendorHEDTEC OY AB

Environment and safety

Sustainability categories

Features

emissions calculated according to EN 15821:2010Yes
Motion sensorYes
Twilight sensorYes
