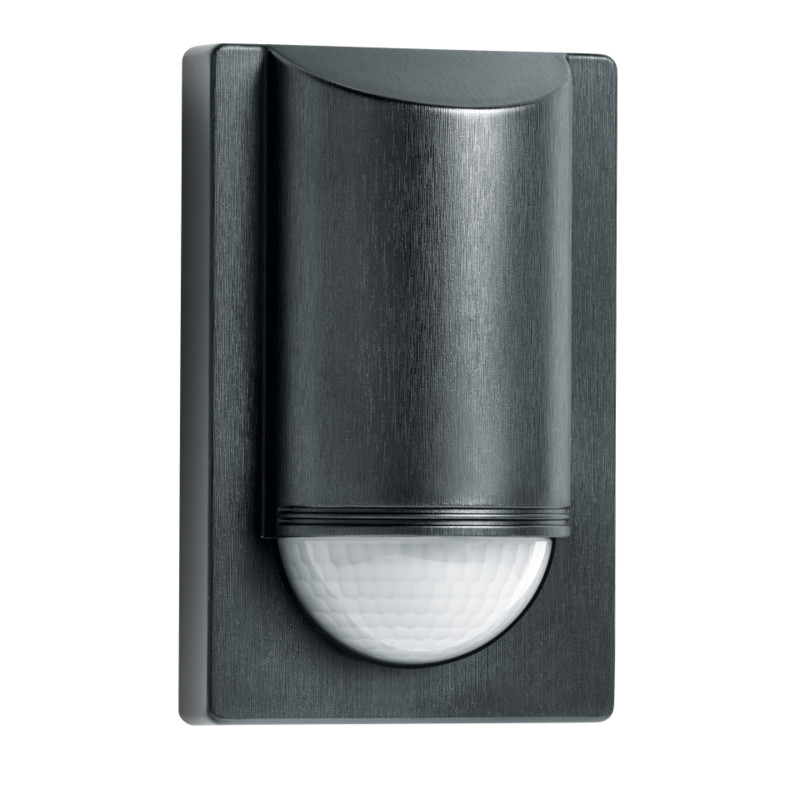

MOTION DETECTOR IS 2180 ECO 180 IP54 WA BL
Product code
2604433
Technical information
PIR sensor for wall mounting
Power: 2000 W (res.)

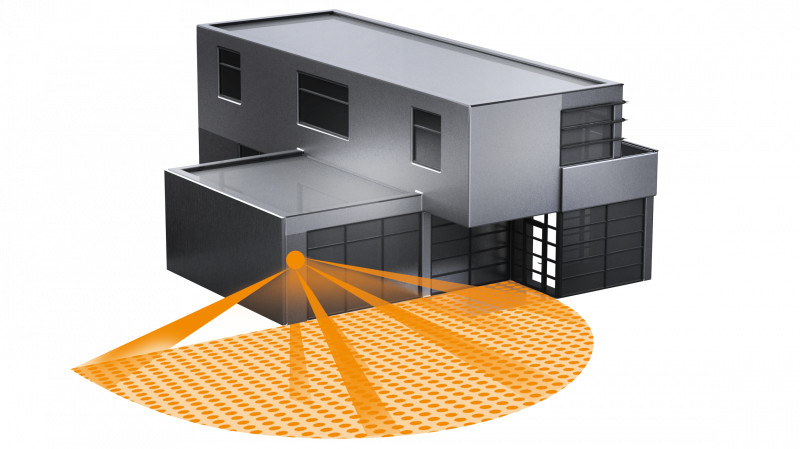

Operating angle: 180°
Detection angle: 90°

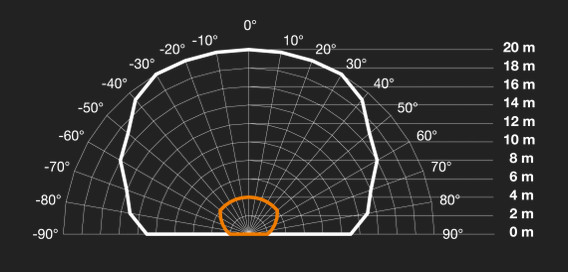

Operating distance: max. 12 m (tang.)
Switch-on time: 8s-35min
Dusk sensor: 2-2000 lux
Enclosure class: IP54
Protection class: II This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Movement sensor/presence detector complete (EC000133)
ModelMovement sensor
Constant light controlno
HVAC-controlno
Forced switch onno
Forced switch offyes
Animal zoneno
Creep-under protectionyes
Background monitoringno
Networkableyes
Scan angle180 °
Optimum mounting height2 m
Staircase light controllerno
Bridging switchyes
Max. reach sideways12 m
Max. presence range226 m²
Product codes
SAPCEY095
STK2604433
PLC2604433
GTIN/EAN4007841034702
Manufacturer part number034702
Vendor material number2604433
Basic information

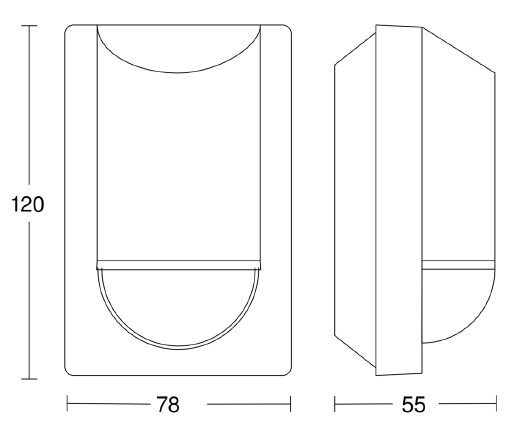

Package measurements (L x W x H)78 x 55 x 120 mm
Package volume0.515 l
Package weight0.277 kg
Base uniteach
Package units1 / 24
Package contents–
UNSPSC46171608
BrandSTEINEL
VendorHEDTEC OY AB
Documents (8)
Certificates
Brochures & documents
Links
Environment and safety
Sustainability categories
Energy efficiency
Features
emissions calculated according to EN 15821:2010Yes
Motion sensorYes
Twilight sensorYes
