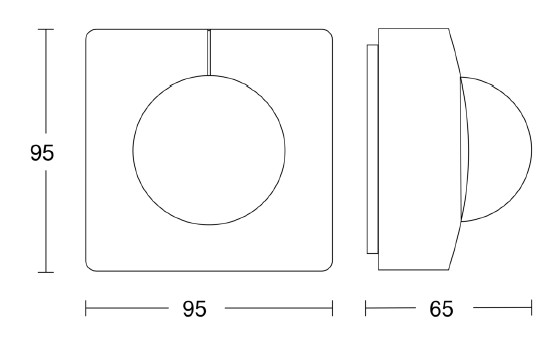

MOTION DETECTOR IS3180 SQ DALI 180 IP54 CE WH
Product code
2604340

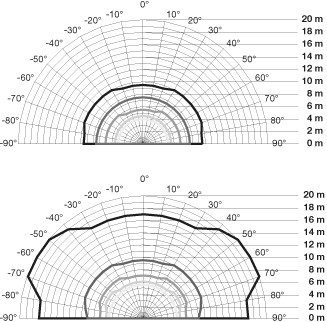

180° infrared motion detector. Mount on wall or corner. Monitors up to 500 m² area, detection distance up to 20 m. 2 pyroelectric sensors. Available in surface and recessed mounting models. Surface mounting: IP54, recessed mounting: IP20. Available with COM1, PF, DALI2, LiveLink, and KNX. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Movement sensor/presence detector complete (EC000133)
ModelMovement sensor
Constant light controlyes
HVAC-controlno
Forced switch onno
Forced switch offno
Animal zoneno
Creep-under protectionyes
Background monitoringno
Networkableyes
Scan angle180 °
Optimum mounting height2 m
Staircase light controllerno
Bridging switchyes
Max. reach sideways20 m
Max. presence range0 m²
Product codes
SAPCDH544
STK2604340
PLC2604340
GTIN/EAN4007841010553
Manufacturer part number010553
Vendor material number2604340
Basic information
Package measurements (L x W x H)160 x 125 x 75 mm
Package volume1.5 l
Package weight0.23 kg
Base uniteach
Package units1 / 21
Package contents–
UNSPSC46171608
BrandSTEINEL
VendorHEDTEC OY AB
Documents (8)
Certificates
Brochures & documents
Links
Environment and safety
Sustainability categories
Energy efficiency
Features
emissions calculated according to EN 15821:2010Yes
Motion sensorYes
Twilight sensorYes
