MOTION DETECTOR IS345 RO UP DALI2 360 IP20 WH
Product code
2604469

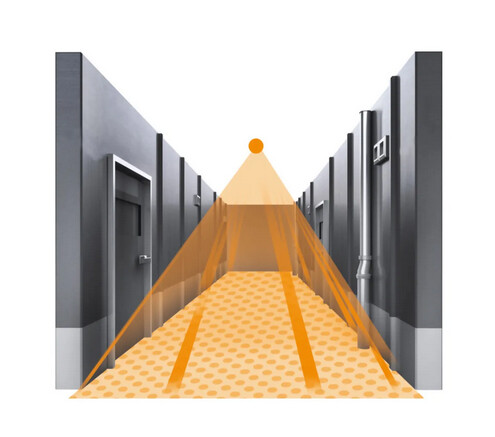

360° infrared motion detector for hotel and residential and office building lobbies and corridors. Ceiling mounting up to 5 meters height. Detection area up to 12 x 6 m for perpendicular motion direction and up to 23 x 6 m for transverse motion direction. Special lens designed for corridors. Available in round and angular models, surface and recessed mounting. Available with COM1, PF, DALI2 APC, DALI2 IPD and KNX. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Movement sensor for bus system (EC001582)
Bus system KNXno
Bus system KNX-RF (Radio Frequency)no
Bus system radio frequencyno
Bus system LONno
Bus system Powernetno
Other bus systemsOther
Radio frequency bidirectionalno
ModelMovement sensor
Mounting methodFlush-mounted
Suitable for ceiling mountingyes
Suitable for wall mountingno
MaterialPlastic
Material qualityThermoplastic
Surface protectionOther
Surface finishingMatt
Product codes
SAPCKQ440
STK2604469
PLC2604469
GTIN/EAN4007841057305
Manufacturer part number057305
Vendor material number2604469
Basic information

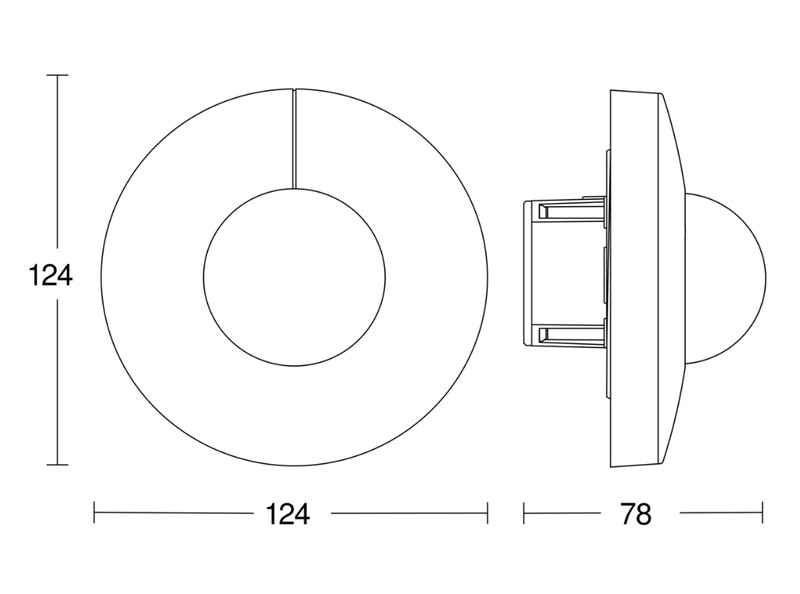

Package measurements (L x W x H)124 x 124 x 78 mm
Package volume1.199 l
Package weight0.145 kg
Base uniteach
Package units1 / 21
Package contents–
UNSPSC46171608
BrandSTEINEL
VendorHEDTEC OY AB
Documents (7)
Certificates
Brochures & documents
Links
Environment and safety
Sustainability categories
Energy efficiency
Features
emissions calculated according to EN 15821:2010Yes
Motion sensorYes
Twilight sensorYes
