PRESENCE INDICATOR IR QUATTRO HD DALI2 360 UP WH
Product code
2604456

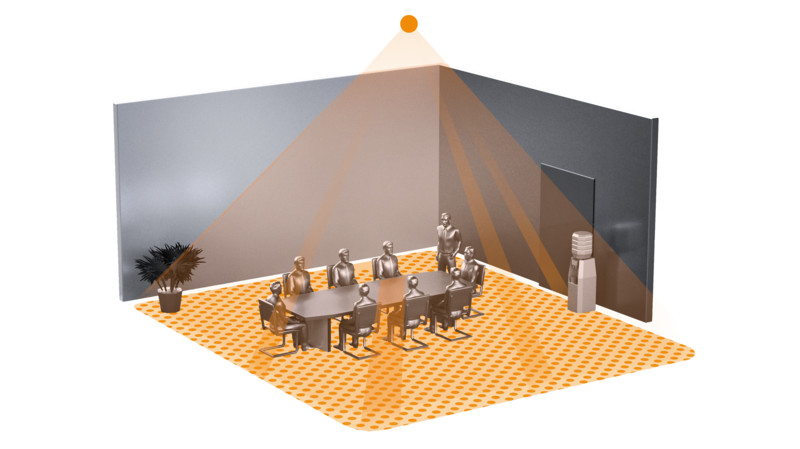

360° infrared presence detector. Square detection area mechanically scalable. Square presence detection area of 64 m², installation height up to 3.5 m. Functions as a motion detector at installation heights up to 10 m. Available with COM1, COM2, DALI2 APC, DALI2 IPD, and KNX. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Movement sensor for bus system (EC001582)
Bus system KNXno
Bus system KNX-RF (Radio Frequency)no
Bus system radio frequencyno
Bus system LONno
Bus system Powernetno
Other bus systemsOther
Radio frequency bidirectionalno
ModelPresence detector
Mounting methodFlush-mounted
Suitable for ceiling mountingyes
Suitable for wall mountingno
MaterialPlastic
Material qualityThermoplastic
Surface protectionOther
Surface finishingMatt
Product codes
SAPCKQ421
STK2604456
PLC2604456
GTIN/EAN4007841057497
Manufacturer part number057497
Vendor material number2604456
Basic information
Package measurements (L x W x H)120 x 120 x 70 mm
Package volume1.008 l
Package weight0.164 kg
Base uniteach
Package units1 / 12
Package contents–
UNSPSC46171608
BrandSTEINEL
VendorHEDTEC OY AB
Documents (7)
Certificates
Brochures & documents
Links
Environment and safety
Sustainability categories
Energy efficiency
Features
emissions calculated according to EN 15821:2010Yes
Motion sensorYes
Twilight sensorYes
