DOWNLIGHT INSAVER SLIM 220 20W 2350lm 830 UGR19 pinta

Product code
4278545

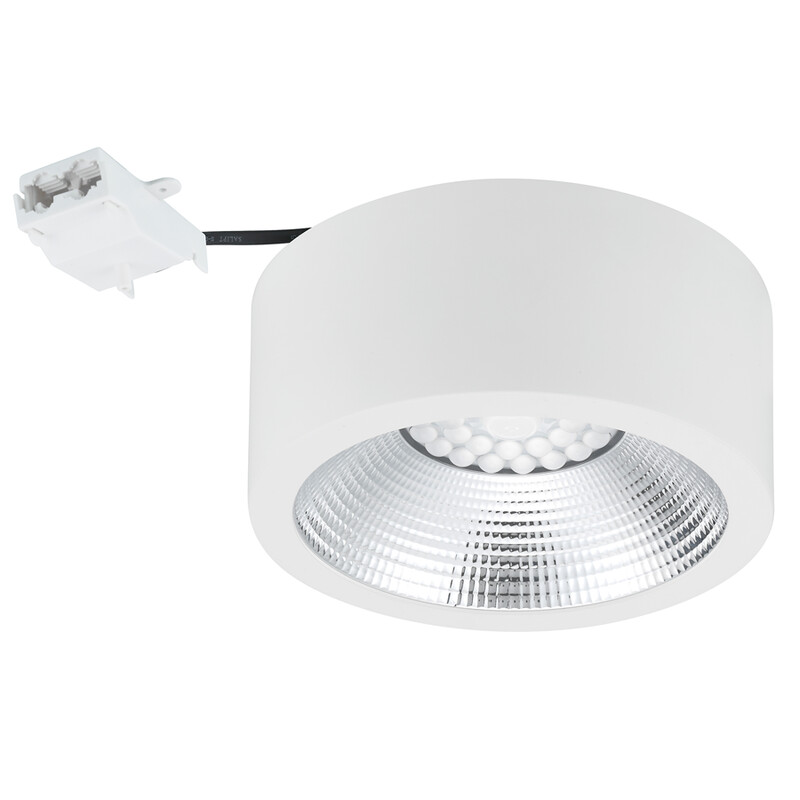

Surface-mounted high-performance LED luminaire with aluminum reflector, specifically designed for lighting in offices, schools, and institutions, as well as other spaces requiring high-quality and glare-free illumination. DALI models available on order.

  • Surface-mounted

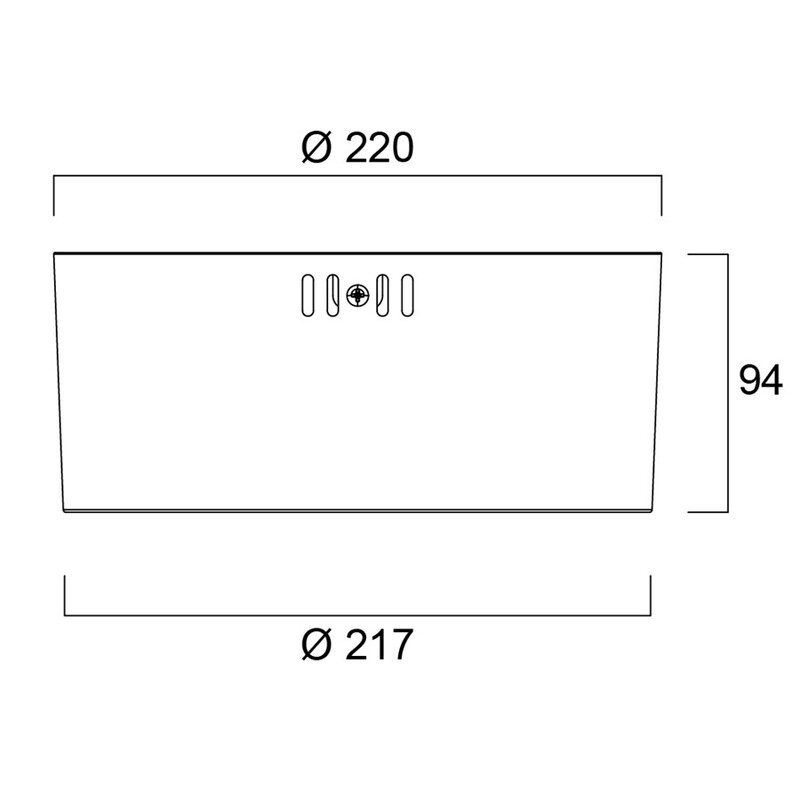

  • Two sizes: 220 and 165 mm
  • LED 9.5W and 20W, 1150 – 2500 lm
  • Energy efficiency up to 126 lm/W
  • Color temperature: warm white 3000K and white 4000K
  • MacAdam SDCM3
  • IP20

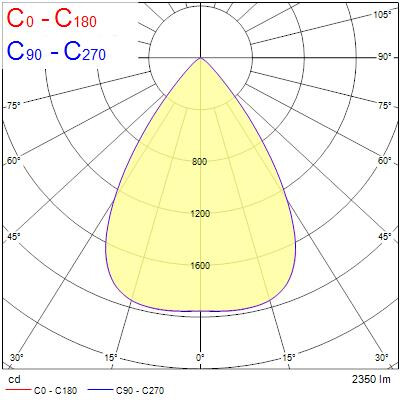

  • Beam angle 70°
  • Aluminum reflector
  • White RAL 9010 ceiling ring
  • UGR19 glare value compliant with standard EN12464-1
  • Separate LED driver included in delivery
  • LED flicker: Ultra Low Flicker (5% or less)
  • MMJ cable connector for daisy-chaining included in delivery
  • DALI models available on order
  • Long lifespan 100,000 h L70
  • 5-year warranty
This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingyes
Suitable for built-in mountingno
Suitable for wall mountingno
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for traverse mountingno
Suitable for pedestal/floor mountingno
Suitable for light-track mountingno
Suitable for clamp-mountingno
Suitable for low voltage cable systemno
AdjustabilityNot adjustable
With movement sensorno
With light sensorno
Lamp typeLED exchangeable
With light sourceyes

Product codes

SAPCZY757
STK4278545
PLC4278545
GTIN/EAN5410288305165
Manufacturer part number0030516
Vendor material number5410288305165

Basic information

Package measurements (L x W x H)226 x 226 x 103 mm
Package volume5.261 l
Package weight1.785 kg
Base uniteach
Package units1 / 8
Package contents
UNSPSC39111544
BrandSYLVANIA
VendorFEILO SYLVANIA FINLAND OY

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)23.205
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490

Documents (1)

Sustainability brochures & documents
