DOWNLIGHT PIXO LINE PIXO LINE 1500 UGR19 830 WHITE

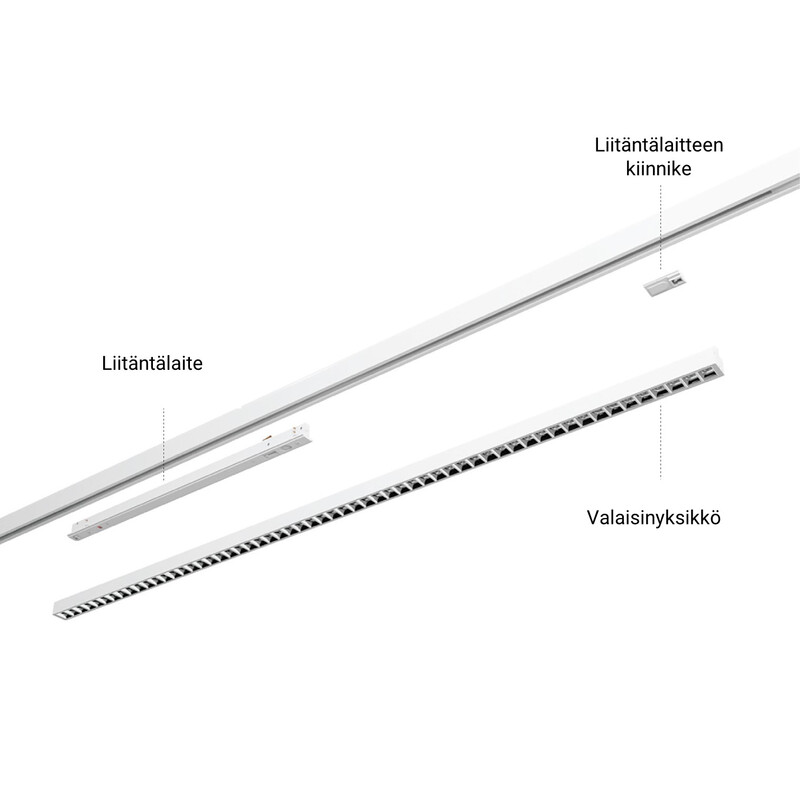

Pixo Line is a stylish linear rail light ideally suited for general lighting in offices, retail stores, galleries, and restaurants. The light consists of a lighting unit and a mounting unit, both of which must be ordered separately. Optical options for the lighting unit include a metallic aluminum UGR19 optic and a micro-prism optic providing a wider light distribution. The mounting unit compatible with the rail can be chosen as either a Multipower or DALI model. Pixo Line is compatible with the most common three-phase rails. The lighting unit is attached using a Zhaga 14 standard connector.

Features of the light series

• LED 50W
• Luminous flux: max 7400 lm micro-prism, 7500 lm UGR19
• Color temperatures: 3000K and 4000K
• Luminous efficacy max 150 lm/W
• Beam angles: 70° UGR19 and 90° micro-prism
• IP20/IK03
• Optical options: glossy aluminum (UGR19) and micro-prism

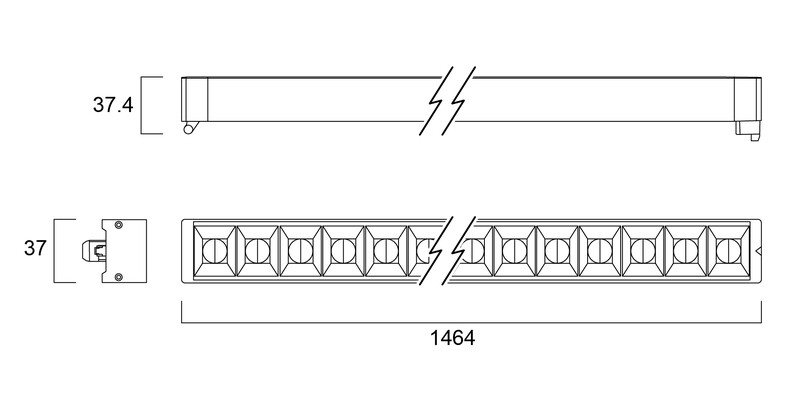

• Lighting unit length 1500 mm, mounting unit length 600 mm
• Separate mounting unit and mounting bracket for three-phase rail, compatible with the most common three-phase rails

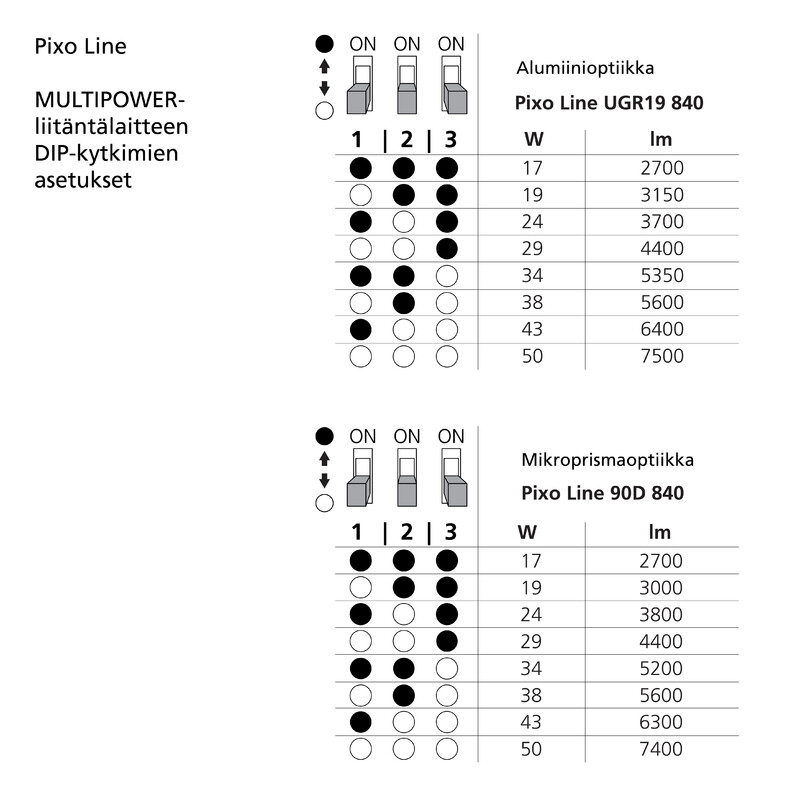

• Mounting units: Multipower ON/OFF and DALI
• Color of light housing and mounting unit: white or black
• Lighting unit attachment: Zhaga 14 connector
• Lifetime 90 000 h L80
• 5-year warranty

This product description is an automated translation of the original Finnish description.
