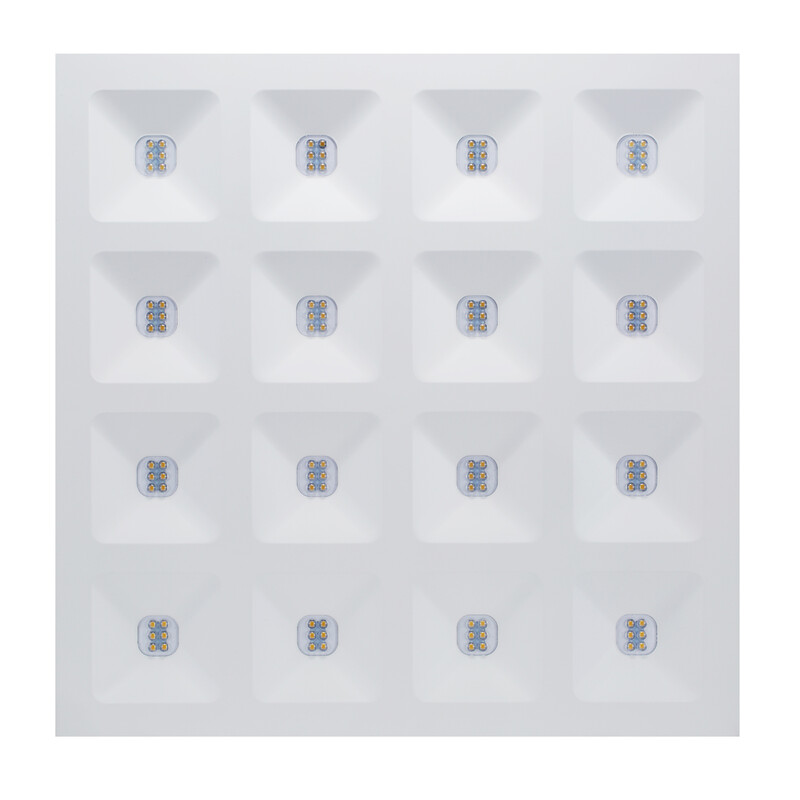

MODULAR LUMINAIRE QUADRO 600 4450LM 830 DALI

Unique architectural LED panel with extremely low glare UGR16 for spaces where light quality is crucial. Quadro is ideal for office, meeting, and school lighting as well as general lighting for corridors and lobbies. Available in DALI/Switch-DIM and Multipower models, where the luminous flux (lm) and power (W) of the luminaire can be easily adjusted via DIP switch. Two sizes available: 600x600 mm and 1200x300 mm. Quadro is recessed-mounted and can also be suspended using a suspension kit or surface-mounted with a surface mounting frame. Mounting accessories to be ordered separately.

Features of the luminaire series

• Recessed mounting
• Surface mounting, surface mounting frame available as optional accessory
• Suspension mounting, suspension kit available as optional accessory
• Energy efficiency up to 153 lm/W
• Multipower 15 – 34 W, 2100 – 4650 lm
• DALI/Switch-DIM 34 W 4500 lm and 34 W 4650 lm
• LED module luminaire meeting UGR16 glare requirement
• Opening angle 75°
• Color temperatures 3000 K and 4000 K
• IP40/IK08 • 600x600 mm and 1200x300 mm
• Color white RAL9003
• In Multipower version, luminous flux (lm) and power (W) can be easily adjusted via DIP switch (8 options)
• Chain connection: Multipower 3x2.5 mm², DALI/Switch-DIM 5x2.5 mm²
• Optional emergency lighting unit available
• Long lifespan 100 000 h L70
• 5-year warranty

Optional accessories, electrical numbers

• 4274380 Suspension kit, includes 2 suspension cables with fittings
• 4278312 Surface mounting frame 600 x 600 x 70 mm
• 4271390 Mounting frame 600 x 600 mm for plasterboard ceiling
• 4274380 Suspension kit, includes 2 suspension cables with fittings. For 1200 mm long luminaire, 3 suspension cables are recommended
• 4279325 Surface mounting frame 1200 x 300 x 70 mm
• 4271391 Mounting frame 1200 x 300 mm for plasterboard ceiling

This product description is an automated translation of the original Finnish description.
