MODULAR LUMINAIRE QUANTUM QUANTUM 1200X300 MULTIPOWER

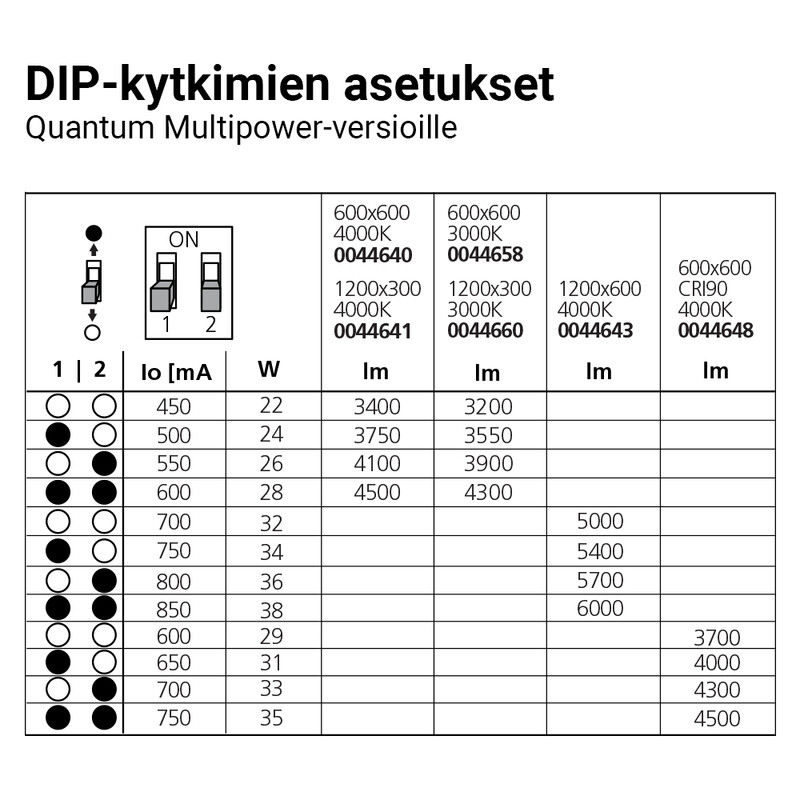

The power and luminous flux of this 0044641 light can be easily adjusted via a DIP switch: 22W 3400 lm, 24W 3750 lm, 26W 4100 lm, 28W 4500 lm.

Energy-efficient, A-class LED panel for recessed mounting, also available with accessories for recessed mounting on ceiling panels as well as surface and suspended mounting. Luminous efficacy up to 161 lm/W. The light has an IP54 protection rating on the underside. Quantum features a micro-prism glare shield and a low UGR19 glare value. This efficient panel light is particularly suitable for office, school, and hospital lighting. Multipower and DALI-2/Switch-DIM models available in three sizes: 600x600, 1200x300, and 1200x600 mm. SylSmart Connected models available in sizes 600x600 and 1200x300 mm.

Lighting series features

• 28–35W, 4300–6000 lm
• Luminous efficacy up to 161 lm/W
• UGR19 micro-prism
• MacAdam SDCM3
• Color temperature 3000K or 4000K
• Control methods: Multipower On/Off, DALI-2/Switch-DIM, and SylSmart Connected
• Color rendering CRI80 and CRI90

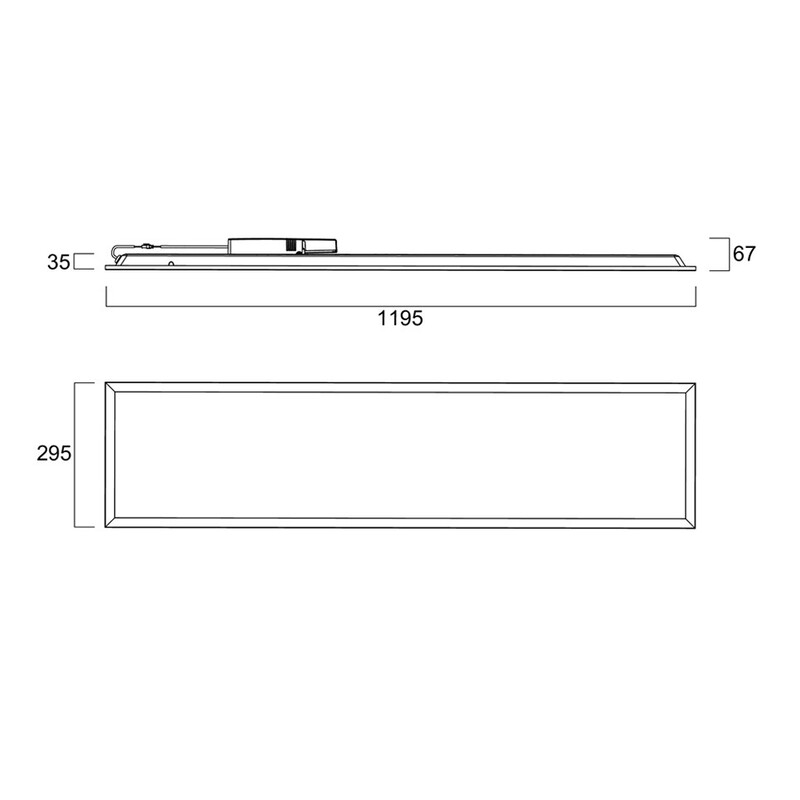

• Thin 35 mm profile (without LED driver)
• White RAL 9003
• Protection rating IP54/IP20 (IP54 in closed ceiling panel structure)
• Standard recessed mounting on T-bar
• Installation options with accessories: recessed mounting on ceiling panels, surface and suspended mounting
• Integrated chaining enclosure (LILO) suitable for MMJ connection
• Chaining: 3 x 2.5 mm² (Multipower and SylSmart Connected), 5 x 2.5 mm² (DALI)
• 2 safety cables included as optional accessories
• Quick-connect connector between LED driver and panel
• Long service life of 105,000 h L80
• 5-year warranty

Accessories for panel lights

• Part no. 4279569 Mounting frame for 600x600 gypsum board ceiling
• Part no. 4279571 Mounting frame for 1200x300 gypsum board ceiling
• Part no. 4279573 Surface mounting frame 600x600x70 mm
• Part no. 4279575 Surface mounting frame 1200x300x70 mm
• Part no. 4279627 Surface mounting frame 1200x600x70 mm
• Part no. 4170651 Cable suspension set 1.5m Start Panel - Quantum - OptiClip - Quadro
• Part no. 4278349 Emergency lighting unit 3h 6V-55V
• Part no. 4278351 Emergency lighting unit 3h 6V-55V DALI

This product description is an automated translation of the original Finnish description.
