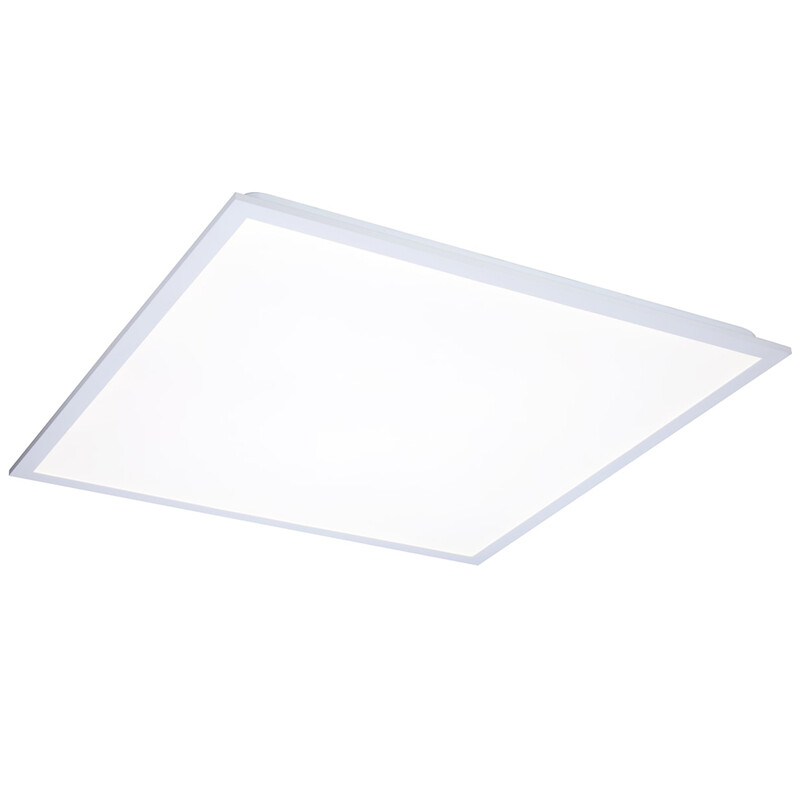

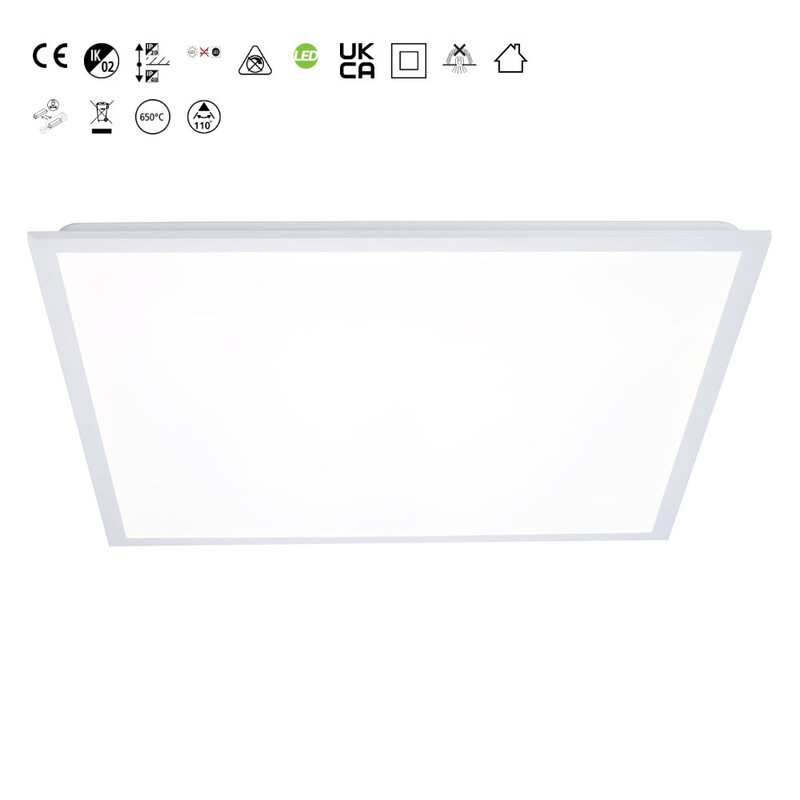

MODULAR LUMINAIRE START ECO PANEL 600 35W 4000LM 840 MP
Product code
4279964
Start eco Panel is an affordable recessed LED panel for break rooms, offices, and meeting rooms. Even light distribution provides a pleasant and soft illumination. Available with surface-mounted accessories.
Lighting series features
- Recessed installation
- 35W 4200-4200 lm
- Luminous efficacy up to 120 lm/W
- Color temperatures 3000, 4000, 6500K
- MacAdam SDCM5
- Glare protection: micro-prism UGR19 or opal UGR22

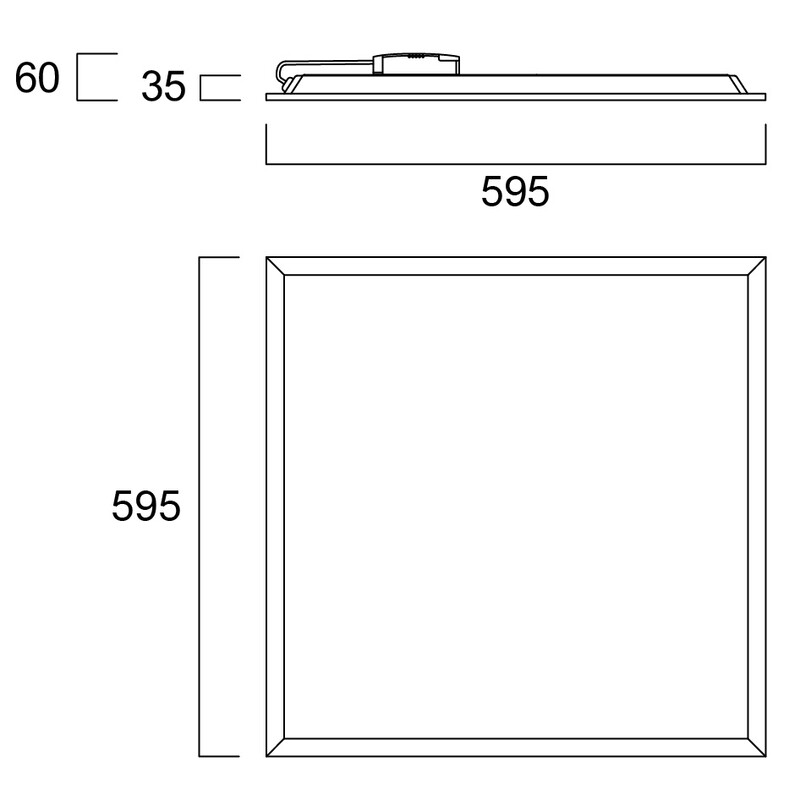

- Size 600x600 mm
- Light control: ON/OFF IP40/IP20 (bottom IP40/top IP20), IP40 in enclosed ceiling structure
- Chaining: 3x1.5 mm2 with separate LiLo connection box
- Easy and quick installation (on T-bar)
- Delivery includes LED driver and safety cable
- Optional accessories available: Safety light unit with 3-hour battery, surface mounting frames for gypsum ceiling, and suspension kit
- Lifespan 100,000 h
- 5-year warranty.
Product details
Technical specifications
Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for wall mountingno
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for built-in mountingyes
Suitable for surface mountingno
Suitable for light line configurationno
Suitable for clamp-mountingno
Suitable for workplace according to EN 12464-1yes
Lamp typeLED not exchangeable
With light sourceyes
Suitable for number of light sources1
Housing materialSteel
Housing colourWhite
Material coverPlastic, structured
Type of gridNone
Product codes
SAPDMW285
STK4279964
PLC4279964
GTIN/EAN5410288480862
Manufacturer part number0048086
Vendor material number5410288480862
Basic information
Package measurements (L x W x H)640 x 350 x 600 mm
Package volume134.4 l
Package weight2.44 kg
Base uniteach
Package units1 / 4 / 4
Package contents–
UNSPSC39111544
BrandSYLVANIA
VendorFEILO SYLVANIA FINLAND OY
Documents (4)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)31.72
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
