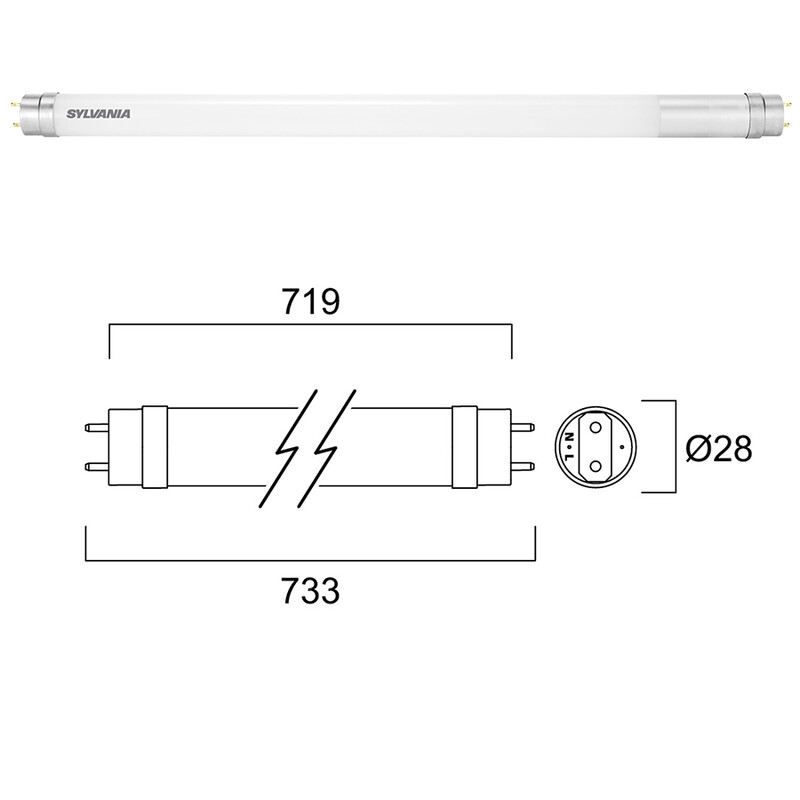

T8 LED TOLEDO AVANT TOLEDO AVANT T8 CCG L734 1350L
Product code
4941360
Energy-efficient ToLEDo Avant T8 HO LED tube. Service life of 50,000 hours L70F50 – lasts twice as long as a traditional fluorescent tube. ToLEDo Avant T8 is highly energy efficient, resulting in a short payback period for your investment. Suitable for applications such as factories, storage areas, offices, classrooms, parking garages, supermarkets, and department stores. Compatible with traditional magnetic ballasts and direct mains voltage. An LED starter is included with the tube.
- Power ratings: 6.6W, 13.3W and 18W. Lengths: 600 mm, 1200 mm and 1500 mm
- Power ratings: 6W, 9W, 11.3W and 12W. Lengths: 451 mm, 734 mm, 908 mm and 984 mm
- Light output: 950 – 2700 lm
- Excellent luminous efficacy up to 158 lm/W
- Color temperatures: 3000K, 4000K and 6500K
- 360° omnidirectional light distribution
- G13 base
- Frosted tube surface
- Glass tube with aluminum end caps, identical appearance to traditional fluorescent tubes
- Permitted ambient temperature: -20°C – +55°C
- 5-year warranty
- Energy class D
- Service life: 50,000 h
- Pack size: 10 pcs
- We recommend removing the compensation capacitor in luminaires equipped with magnetic ballasts. Suitable for direct connection to mains voltage (AC 220-240V)
- Not suitable for use with electronic ballasts
Product details
Technical specifications
Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage230-230 V
Nominal current43.5-43.5 mA
Power factor0.9
Lamp power9-9 W
Voltage typeAC
Suitable for electronic ballastno
Suitable for magnetic ballastno
Luminous flux1350-1350 lm
Rated luminous flux according to IEC 626121350 lm
Lamp efficacy150 lm/W
Colour rendering index CRI80-89
Lamp shapeTube, single-ended
Filament lampno
Type of glass/coverOther
Colour of light according to EN 12464-1Neutral white 3300-5300 K
Product codes
SAPDBX623
STK4941360
PLC4941360
GTIN/EAN5410288302577
Manufacturer part number0030257
Vendor material number5410288302577
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.065 l
Package weight0.016 kg
Base uniteach
Package units10
Package contents–
UNSPSC39101628
BrandSYLVANIA
VendorFEILO SYLVANIA FINLAND OY
